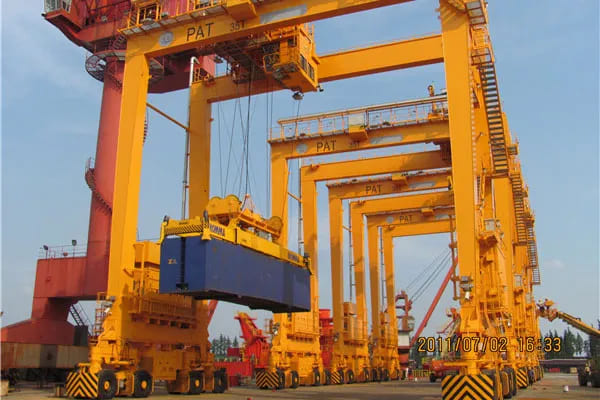

Rubber tyred container gantry crane is appropriate for handling, loading and unloading ISO container in container yard or transfer station such as port, wharf and logistics. Supported by pneumatic rubber tyres and powered by diesel generator, cable drum or lithium battery, it consists of gantry mechanism, trolley assembly, gantry frame, power system and special container spreader.

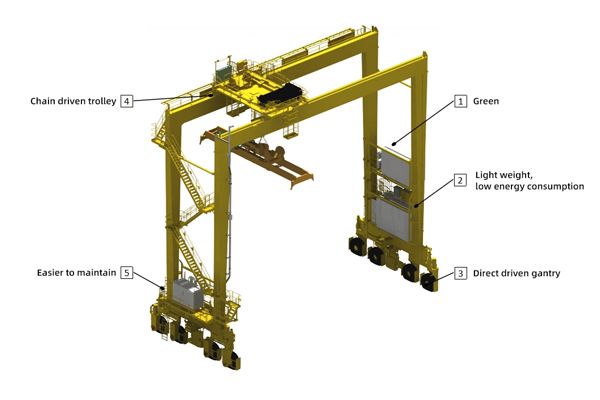

The design, manufacture and inspection comply with Chinese standard and international standards such as FEM, DIN, IEC, AWS and etc. Juren’s RTG has the characteristics of multiple function, high efficiency, stability, reliability, wide range of operation, good maneuverability, low sensitive to ground unevenness, easy operation and maintenance. Straight travel, lateral travel, 0-90 degree turning and turning in the same place are the most important features. It is also completed with safety indication and overload protection device to provide maximum safety for operators and equipment. The electric drive adopts fully digital AC variable frequency and PLC speed control technology with flexible control and high accuracy. Standard bought-in components from well-known brands at home and abroad
ensure overall quality.
standard two-way flexible resistance anti-swing system, multiple function frequency control anti-swing inching system and electronic anti-swing system as option, perfect anti-swing effects, easy maintenance.
vector frequency conversion, electric energy feedback(if city power or lithium battery supplies power), torque balance control, energy saving and environmental protection, convenience and efficiency.
unique crane guiding system and trimming technology, personalized crane turning, jacking point, rollover protection
multiple operation mode---manual, semi-automatic and automatic remote operation, complete with advanced technology and stable performance.
applied core technologies such as automatic running positioning, flexible landing on containers, trajectory intelligent control, intelligent tilting anti-snag safety protection and etc.
A variety of safety measures, including strong windalarm, safety dynamic scanning.
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
| Model | LJ35/40-23 | Light Type LJ40-32 | |||||
| Lifting Capacity(under spreader)(t) | 35, 40 | 40 | |||||
| Work Duty | A7, A8 | A6, A7 | |||||
| Span (m) | 23, 47 | 23, 47 | |||||
| Lifting Height (m) | 12.2~17.8 | 16.5 | |||||
| Stack Layers/Passing Layers | 3/4~5/6 | 5/6 | |||||
| Container Model | 20′,40′, 45′ | 20′,40′, 45′ | |||||
| Spreader Rotating Angle | ±5° | ±5° | |||||
| Hoisting Speed (m/min) | 13/26， 23/52 | 12/18, 18/28 | |||||
| Cross Travel Speed (m/min) | 50，70 | 24 | |||||
| Long Travel Speed (m/min) | Full Load-90, Without Load-130 | Full Load-20 Without Load-40 | |||||
| Max. Wheel Load (KN) | 310 | 310 | |||||
| Total Rating (KW) | 150, 230 | 110, 150 | |||||
| Power Supply | Electric, Diesel Engine, Electric-disel Engine | ||||||

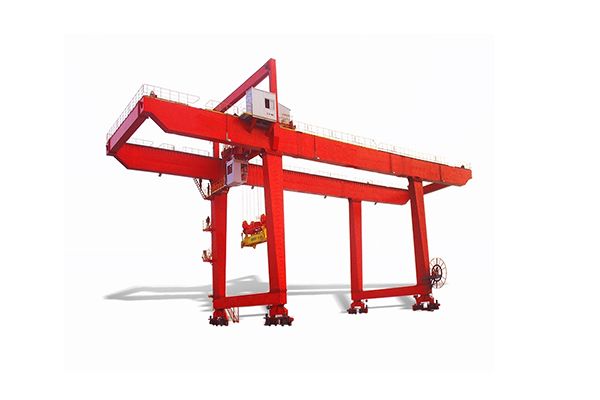

Capacity : 35-40.5t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
Capacity : 35-40.5t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
Capacity : 35-40.5t Span : 5~31.5m Lifting height ： 6~30m Work level : A5,A6,A7
JUREN GROUP is China's largest and the world' sthird-largest crane manufacturer
More than 100 service centres around the world, with morethan 500 R&D staff.

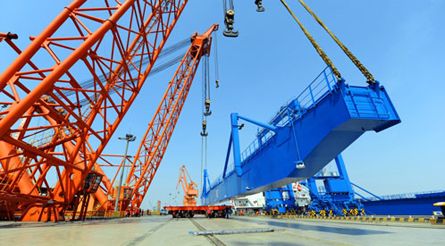

Five-star production site, hardcore workshop work doubly comfortable
