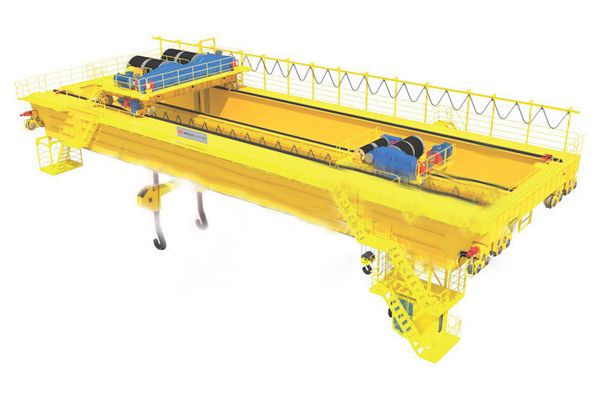

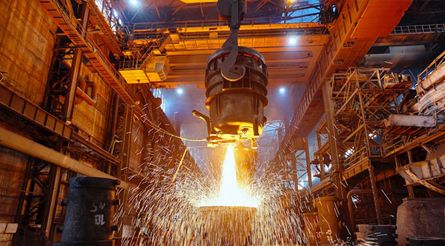

Metallurgy Overhead Cranes are used to transport molten steel ladles in foundries and steel mills. Metallurgy overhead cranes are superior performance cranes operating in both high temperature and high amount of dust environments.
* Equipped with a monitoring system to monitor the working status of the crane in real time.
* The hoisting mechanism of the ladle crane adopts a redundant system design to ensure the safety and reliability of hoisting liquid metal.
* Wireless transmission and electronic scale, real-time transmission of liquid metal weight.
* Anti-sway system, stable operation and accurate positioning
* Fully automatic, CNC control.
* European standard design, FEM/DIN.
Because the casting crane works in the harsh environment of high temperature dust, the safety and reliability of the crane are much higher than that of the ordinary bridge crane.

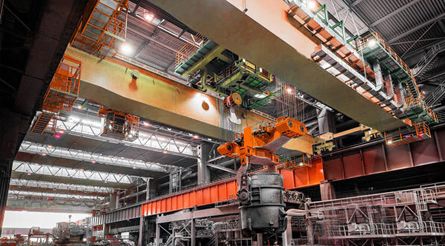

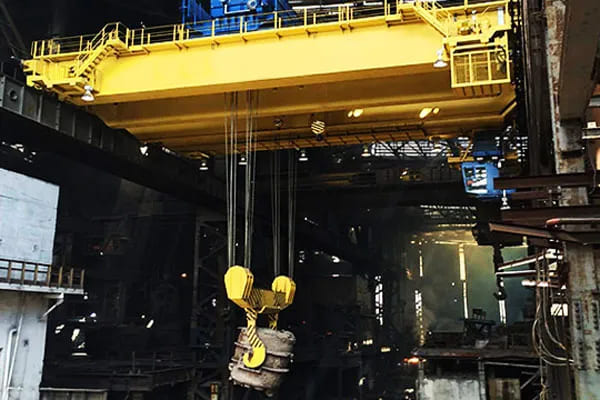

The main hook is a gantry spreader with two plate hooks, which is used for lifting and handling the ladle; the auxiliary hook is a forging hook or a plate hook, which is used for dumping molten steel, molten iron or other lifting items.
Casting crane takes heat insulation and radiation protection measures for the main beam, sub-main beam, electrical room, etc., in order to reduce the influence of external heat on its baking, because it needs to work continuously at high temperatures.
our motors and power supplies are designed with redundancy. If one of the motors or a group of electronic control devices fails, the other group of driving devices can be used under the rated lifting capacity. Complete a work cycle.
The highlights of this machine are integral processing technology and secondary assembly technology. For the first time assembly, the welding components sizes are fixed and adopt flat position welding to ensure the quality of welding seams.
The secondary assembly is to release welding stress before the integral processing of the bridge to ensure the stability and accuracy of product process precision.
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
| Techinical Specifications Part 1 | |||||||||
| Lifting Capacity | t | 100/32 Double Girder | 100/32 Four Girders | 125/32 Double Girder | 125/32 Four Girders | ||||
| Span | m | 19.5~28.5 | 19~28 | 19.5~28.5 | 19~28 | ||||
| Lifting Height | m | 20/22 | 20/22 | 20/22 | 20/22 | ||||
| Work Duty | A7 | ||||||||
| Main Lifting Speed | m/min | 7.5 | 7.5 | 7.5 | 7.5 | ||||
| Vice Lifting Speed | m/min | 10.5 | 12 | 10.5 | 12 | ||||
| Crane Traveling Speed | m/min | 38 | 32.5/37.4 | 38 | 38/37.4 | ||||
| Trolley Traveling Speed | m/min | 68 | 78 | 79.7 | 79.7 | ||||
| Power | KW | 393 | 426.5 | 479 | 484.5 | ||||
| Track | QU120 | ||||||||
| Lifting Capacity | t | 200/50 Four Girders | 225/65 Four Girders | 240/75 Four Girders | 280/75 Four Girders | 320/80 Four Girders | |||||
| Span | m | 28 | 27 | 24 | 21 | 24.5 | |||||
| Lifting Height | m | 26 | 28 | 31 | 24/26 | 28/32 | |||||
| Work Duty | A7 | ||||||||||
| Main Lifting Speed | m/min | 8 | 8 | 10 | 10 | 9 | |||||
| Vice Lifting Speed | m/min | 9.3 | 10 | 10.5 | 10.5 | 10 | |||||
| Crane Traveling Speed | m/min | 40 | 40/38 | 38/40 | 36/39 | 36/39 | |||||
| Trolley Traveling Speed | m/min | 86 | 87 | 87 | 76 | 63 | |||||
| Power | KW | -- | -- | -- | -- | ||||||
| Track | QU120 | ||||||||||
Capacity : 5-320t Span : 5~31.5m Lifting height ： 6~30m Work level : A5, A6,A7
Capacity : 5-320t Span : 5~31.5m Lifting height ： 6~30m Work level : A5, A6,A7
Capacity : 5-80t Span : 5~31.5m Lifting height ： 6~30m Work level : A5,A6,A7
