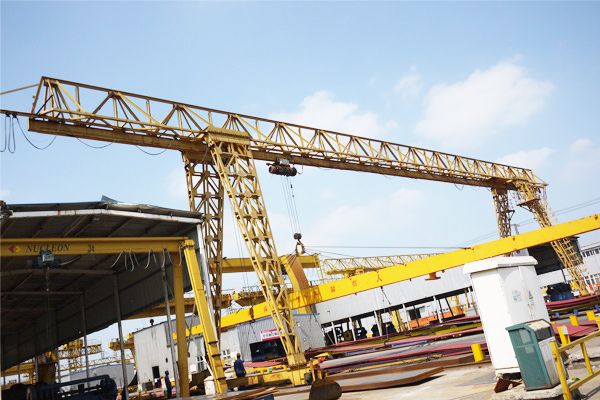

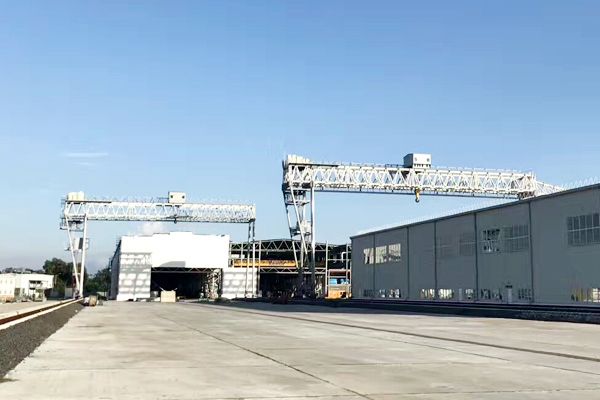

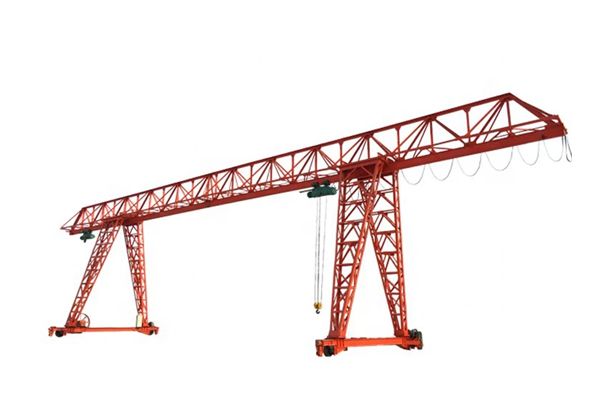

Truss Gantry Crane(Lattice girder gantry crane) is designed and fabricated in accordance with China national standard JB / T5663-2008. The lifting mechanism can be CD1, MD1 wire rope electric hoists and trolley. The cantilever parts can be made according to the factory operating space.
There are 2 kinds of crane traveling: separated drive and drive brake. This crane can be controlled on ground and operating cab. The operating cab can be open or closed type, which can be installed on the left side or right side and there are 3 ways to enter the cab (side, end face and top) to meet the needs of users in different circumstances.
* Intelligent overload limiter in the hoist improves the cranes safety maximum.
* Our polyurethane buffer is of high-class quality, durability and shock-resistance.
* Advanced emergency shutdown system.
* Hoisting limiter, travel limit switch of cranes promises safety work.
* Integrative out-voltage protection and phase protection.
* Power production capacity, professional technicians, and excellent services.
Double welded box beams, high safety, high steel degree.Adopts high quality carbon steel, Q235B or Q345B.
Motor, speed reducer, brake, coupling, wheels, and coiling blocks.Compact structure, and durable.
Hoisting motor, long traveling motor and hydraulic power motor are included.Two operation modes: cabin and remote control.
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
| Lifting Capacity(T) | Main Hook(T) | 60 | 80 | 100 | 150 |
| Aux Hook(T) | 50 | 50 | 10 | 10 | |
| Span(M) | 20-40 | ||||
| Lifting Height(M) | 9,12 Or Customized | ||||
| Speed(M/Min) | Main Hook | 0.9 | 0.9 | 0.7 | 0.7 |
| Aux Hook | 9 | 9 | 7 | 7 | |
| Hoist Travelling | 20 | ||||
| Crane Travelling | 9 | ||||
| Trolley Travelling | 6 | ||||
| Crane Rail Recommend | P43 | P43,QU70 | QU80 | QU80.QU100 | |
| Power Source | 3-Phase A.C.50Hz 380V | ||||
| Structure | Truss Type, Box Type, One Trolley Type, Two Trolley Type | ||||
| Specific Parameters Depending On Customers' Requirement. | |||||
Capacity : 50-900t Span : 4-18m Lifting height ： 1.2-22m Work level : A3~A5
Capacity : 1~20t Span : 5~31.5m Lifting height ： 6~30m Work level : A2,A3,A4,A5
Capacity : 5-1000t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
