Wire rope electric hoist is a kind of special lifting equipment. Wire rope electric hoist has different types like CD1, MD1, explosion-proof type, metallurgical type. As a common lifting unit, it can be installed on I-beam, electric or manual single beam, double beam, cantilever, gantry and other cranes. Wire rope electric hoist is widely used for civil and construction works of construction and installation companies, factories and mines, as well as mechanical equipment for infrastructure construction projects such as bridge construction, electric power, ship, automobile manufacturing, construction, highway, bridge, metallurgy, mine, slope tunnel, well management and protection, etc.

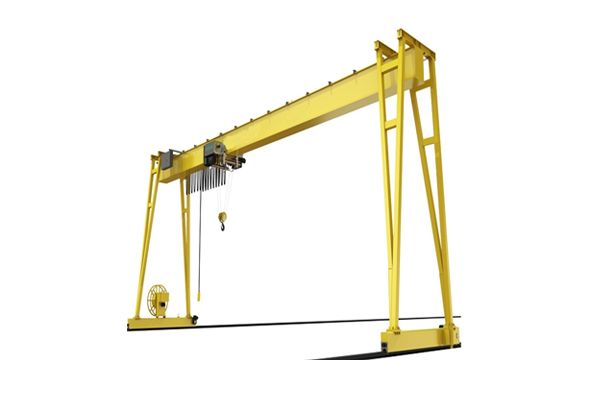

* Loading Capacity: According to weight of lifting load, working environment, plant structure load capacity, crane wheel pressure and so on. Our single girder gantry crane can be designed up to 32t capacity. If you need other tonnage, we can also customize it for you.
* Span: According to distance between runways or columns in workshop, our engneers can derive specific technical scheme. Further more, if customer can provide layout of theplant, our engineer offer precise and economic solution. Generally, span of cranecan be up to 30m and available for customized span.
* Lifting height: According to distance from roof top to ground in workshop, our engneers can confirm lifting height needed. Also, height from roof top to runway will be very important for installation. If customer can provide drawing of the plant section, we can find better choice for you.
It employs bias-rail box-type structure, connects eith endbeam by high-strength, bolt ensuringeasy transportation.
Capacity:1-50t,Protection class F class,Single/Double speed,with traveling trolley and reducer,drum and motor include overload limiter switch

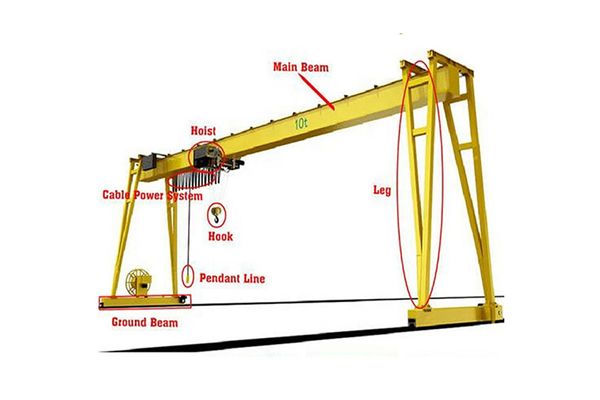

Mainly composed of anti-twisted box profiles and travel units.They can adapt to various load capacities and can becustomized according to customer requirements
A full range of safety systems, Products meet international standards,Customized services s will meet your needs
The technical parameters comply,with standars of FEM and HMl,With high rotational speed and low noise
Capacity:1-450t,Drop Forged Hook,Plain'C'type Swiveling on Thrust Bearing,equipped with belt buckie and wire ropes sheath
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
| Capacity | T | 3 | 5 | 10 | 16 | 20 |
|---|---|---|---|---|---|---|
| Span | m | 12, 16, 20, 24 | 12, 16, 20, 24, 30 | 12, 16, 20, 24, 30 | 12, 16, 20, 24, 30 | 12, 16, 20, 24, 30 |
| Lifting height | m | 6/9 | 6/9, 9 | 6/9, 9 | 6/9, 9 | 6/9, 9 |
| Lifting speed | m/min | 8 0.8/8 | 8 0.8/8 | 7 0.7/7 | 3.5 0.35/3.5 | 3.5 0.35/3.5 |
| Trolley travelling speed | m/min | 20 | 20 | 20 | 20 | 20 |
| Crane travelling speed | m/min | 20 | 20 | 20 | 20 | 20 |
| Max. Wheel load | KN | 37/42, 40/46, 44/50, 48/54 | 54/59, 62/67, 70/75, 78/83, 96 | 97/102, 105/110, 113/118, 121/126, 149 | 143/150, 152/159, 165/174, 169/176, 190 | 198/206, 218/226, 232/240, 265/273, 302/310 |
| Rail recommended | Model | P34, P38 | P24, P38 | P38, P43 | P38, P43 | P38, P43 |
| Total weight | t | 7.4/8.7, 8.6/9.9, 11.3/12.6, 13/14.3 | 8.4/9.8, 9.6/11.2, 13.6/15.2, 18.3/20.4 | 14.8/16.1, 16.7/18.7, 19.6/21.6, 24.4/26.6, 30.1 | 15.2/18.2, 18.9/21.9, 21.8/24.8, 27.0/30.0, 32.8 | 16.8/17.5, 21.6/22.4, 25.0/25.9, 31.0/32.1, 38.0/39.2 |
| Crane base distance | B1 | 5000/6000, 6000/7000 | 5500/6500, 6500/7500 | 5500/6500, 6500/7500 | 6500/7000, 7500/8500, 8500 | 6500/7000, 7500/8500 |
| Crane width | B2 | 5400/6400, 6500/7500 | 6000/7000, 7100/8100 | 6000/7100, 7100/8100 | 7000/7500, 8200/9200, 9200 | 7000/7500, 8200/9200 |
Capacity : 5-20t Span : 5~31.5m Lifting height ： 6~30m Work level : A6,A7,A8
Capacity : 3-200t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
Capacity : 5-320t Span : 5~31.5m Lifting height ： 6~30m Work level : A5,A6,A7
