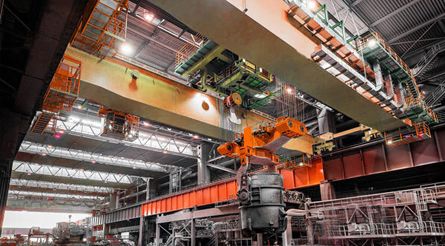

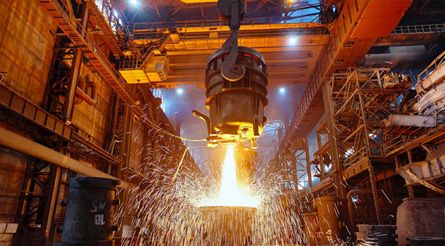

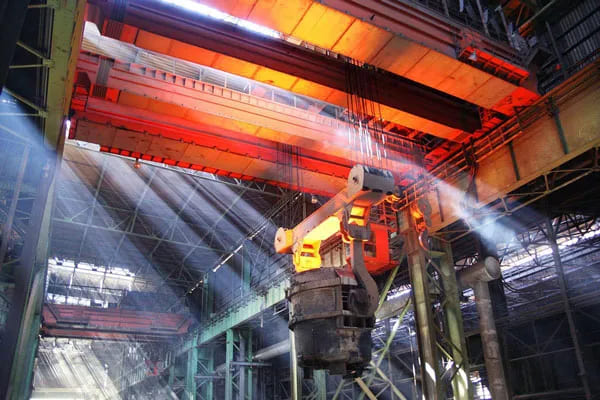

Teeming Crane are used to transport molten steel ladles in foundries and steel mills. Foundry cranes are superior performance cranes operating in both high temperature and high amount of dust environments.
Advanced technology, novel structure, safe and reliable, economical and durable, simple maintenance.
The overall design is light and compact.
Low height, light weight, small hook limit and large working range.
High quality accessories, durable, safe and reliable.
Maintenance and repair costs are low.
The total power of the crane is small and the energy consumption is low.
Frequency conversion speed regulation, stable up and down, small impact.
In addition, Weihua cranes can also be equipped with rotating spreaders, variable hook distance gantry cranes, weighing and other functions.
Because the casting crane works in the harsh environment of high temperature dust, the safety and reliability of the crane are much higher than that of the ordinary bridge crane.

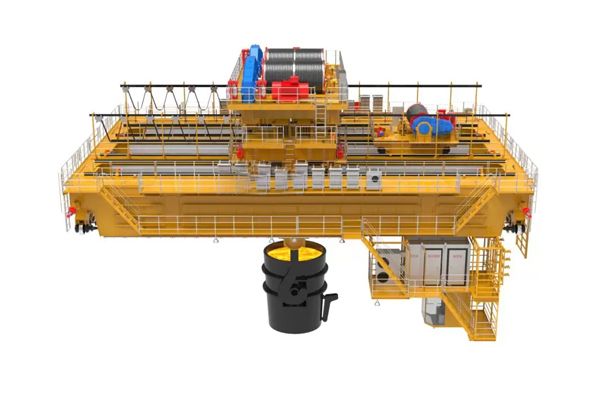

The main hook is a gantry spreader with two plate hooks, which is used for lifting and handling the ladle; the auxiliary hook is a forging hook or a plate hook, which is used for dumping molten steel, molten iron or other lifting items.
Casting crane takes heat insulation and radiation protection measures for the main beam, sub-main beam, electrical room, etc., in order to reduce the influence of external heat on its baking, because it needs to work continuously at high temperatures.
our motors and power supplies are designed with redundancy. If one of the motors or a group of electronic control devices fails, the other group of driving devices can be used under the rated lifting capacity. Complete a work cycle.
The highlights of this machine are integral processing technology and secondary assembly technology. For the first time assembly, the welding components sizes are fixed and adopt flat position welding to ensure the quality of welding seams.
The secondary assembly is to release welding stress before the integral processing of the bridge to ensure the stability and accuracy of product process precision.
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
| Technical Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Capacity (t) | Span (m) | Lifting Height(m) | Work Duty | Main Lifting Speed (m/min) | Aux Lifting Speed (m/min) | Crab Travelling Speed (m/min) | Trolley Travelling Speed (m/min) | Power (kw) | Rail |
| 100/32(Double Girder) | 19.5~28.5 | 20/22 | A7 | 7.5 | 10.5 | 38 | 68 | 393 | QU120 |
| 100/32(Four Girder) | 19~28 | 20/22 | 7.5 | 12 | 32.5/37.4 | 78 | 426.5 | ||
| 125/32(Double Girder) | 19.5~28.5 | 20/22 | 7.5 | 10.5 | 38 | 79.7 | 479 | ||
| 125/32(Four Girder) | 19~28 | 20/22 | 7.5 | 12 | 38/37.4 | 79.7 | 484.5 | ||
| 140/40(Double Girder) | 22~28 | 22 | 6.8 | 9.1 | 38 | 73 | 479 | ||
| 140/40(Four Girder) | 22~28 | 22 | 6.8 | 9.6 | 38 | 77.8 | 510.5 | ||
| 160/40(Four Girder) | 22~28 | 22 | 0.6~6 | 9.5 | 38 | 77.8 | |||
| 180/50(Four Girder) | 28.5 | 27/29 | 7.2 | 9.3 | 38/40 | 86 | |||
| 200/50(Four Girder) | 28 | 26 | 8 | 9.3 | 40 | 86 | |||
| 225/65(Four Girder) | 27 | 28 | 8 | 10 | 40/38 | 87 | |||
| 240/75(Four Girder) | 24 | 30 | 10 | 10.5 | 38/40 | 87 | |||
| 280/75(Four Girder) | 21 | 24/26 | 10 | 10.5 | 36/39 | 76 | |||
| 320/80(Four Girder) | 24.5 | 28/32 | 9 | 10 | 36/39 | 63 | |||
Capacity : 5t - 80t Span : 5~31.5m Lifting height ： 6~30m Work level : A4, A5,A6,A7
Capacity : 5-320t Span : 5~31.5m Lifting height ： 6~30m Work level : A5, A6,A7
Capacity : 5-320t Span : 5~31.5m Lifting height ： 6~30m Work level : A5, A6,A7
