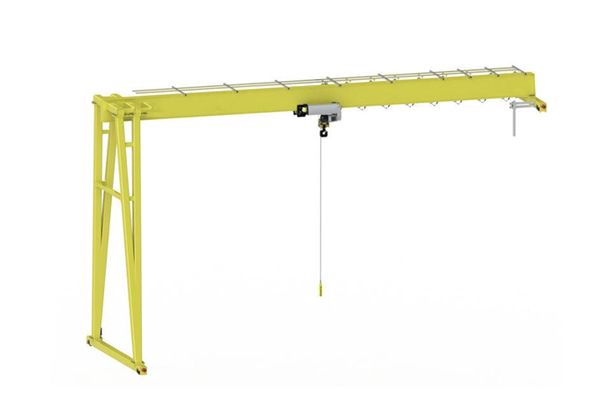

Semi-gantry crane is a form of gantry crane. The outriggers have height difference. It only has one side of the support leg to walk on the ground track, and the other side is the same as the end beam of the bridge crane and walks on the support track. Due to the limitations of the site or production environment, when bridge cranes or gantry cranes are not ideally competent, semi-gantry cranes will be your ideal and economical choice.
* Can be installed under the existing bridge crane
* Achieving efficient operation in the job
* Ensures high performance even in tight spaces
* Both indoor and outdoor operation
* Effectively promote internal logistics work
* Optional flashlight door or wireless remote control system
* It can also be equipped with two hoists or two trolleys
Weihua semi-gantry cranes are safe, efficient, cost-effective, customized on demand, and delivered quickly to meet your individual needs.
It employs bias-rail box-type structure, connects eith endbeam by high-strength, bolt ensuringeasy transportation.
Capacity:1-50t,Protection class F class,Single/Double speed,with traveling trolley and reducer,drum and motor include overload limiter switch
Mainly composed of anti-twisted box profiles and travel units.They can adapt to various load capacities and can becustomized according to customer requirements
A full range of safety systems, Products meet international standards,Customized services s will meet your needs
The technical parameters comply,with standars of FEM and HMl,With high rotational speed and low noise
Capacity:1-450t,Drop Forged Hook,Plain'C'type Swiveling on Thrust Bearing,equipped with belt buckie and wire ropes sheath
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
Lifting capacity （t） | Span （m） | Lifting height （m） | Work duty | Main lifting speed（m/min） | Deputy lifting speed（m/min） | Trolley travelling speed （m/min） | Crane travelling speed（m/min） | Power （KW） | Rail type |
5 | 18~26 | 10 | A5 | 9.2 | -- | 37.2 | 37.7 | 27.8 | 43Kg/m |
30~35 | 12 | 36.8 | |||||||
10 | 18~22 | 10 | 8.5 | -- | 37.2 | 37.7 | 38 | ||
26 | 10 | ||||||||
30~35 | 11 | 47 | |||||||
20/5 | 18~26 | 10 | 7.1 | 9.2 | 36.6 | 40.1 | 67.3 | ||
30~35 | 12 | 44 | 78.3 | ||||||
32/5 | 18~26 | 10 | 6.3 | 9.2 | 29.8 | 38 | 85.5 | ||
30~35 | 12 | 40 | 93.5 | ||||||
50/10 | 18~26 | 10 | 5.9 | 8.5 | 31 | 40.1 | 141.5 | QU80 | |
30~35 | 12 | 44 | 157.5 | ||||||
75/20 | 18~26 | 12 | 3.9 | 7.2 | 38.4 | 3.7~37 | 146 | ||
30~35 | 12 | ||||||||
100/20 | 18~26 | 12 | 3.1 | 7.2 | 33.9 | 3.23~32.3 | 162 | QU100 | |
160/50 | 18~26 | 15 | 3.5 | 5.9 | 22.5 | 2.8~28 | 242 | ||
200/50 | 18~35 | 15 | 3.5 | 5.9 | 29 | 2.8~28 | 299 | ||
320/80 | 18~35 | 15 | 3.6 | 6 | 16.7 | 2.8~28 | 476 | QU120 | |
400/30 | 18 | 18 | 0.15~1.5 | 6 | 10 | 18 | 275 | ||
500/80 | 28.5 | 33 | 0.15~1.5 | 0.6~6 | 1.36~13.6 | 1.6~16 | 350 | ||
600/80 | 36 | 22 | 0.13~1.3 | 0.4~4 | 1.5~15 | 2.5~25 | 405 | ||
800/10 | 36 | 14 | 0.1~1 | 7 | 0.5~5 | 1~10 | 330 |
Capacity : 50-500t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
Capacity : 5-1000t Span : 5~31.5m Lifting height ： 6~30m Work level : A6,A7,A8
Capacity : 3-200t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
