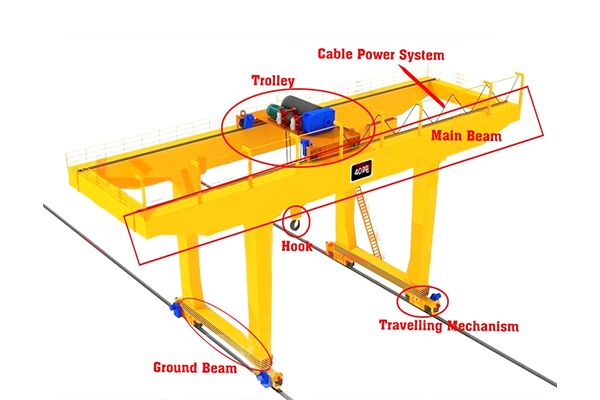

Rail mounted container gantry crane is appropriate for handling, loading and unloading ISO container and railway wide container in container yard or transfer station such as port, wharf, railway and logistics. Supported by multiple steel wheels and powered by electricity, it consists of gantry mechanism, trolley assembly, gantry frame, power system and special container spreader.
*The design, manufacture and inspection comply with Chinese standard and international standards such as FEM, DIN, IEC, AWS and etc. Juren’s RMG has the characteristics of multiple function, high efficiency, stability, reliability, wide range of operation, easy operation and maintenance.
*It is also completed with safety indication and overload protection device to provide maximum safety for operators and equipment. The electric drive adopts fully digital AC variable frequency and PLC speed control technology with flexible control and high accuracy. Standard bought-in components from well-known brands at home and abroad ensure overall quality.
Our main products include upper rotating (trolley rotation) RMG, lower rotating (spreader rotation) RMG, cantilevered and non- cantilevered RMG, RMG for railway.
standard two-way flexible resistance anti-swing system, multiple function frequency control anti-swing inching system and electronic anti-swing system as option, perfect anti-swing effects, easy maintenance.
vector frequency conversion, electric energy feedback, torque balance control, energy saving and environmental protection, convenience and efficiency.
automatic fault detection and real-time data display, safety and reliability.
multiple operation mode---manual, semi-automatic and automatic remote operation, complete with advanced technology and stable performance.
applied core technologies such as automatic running positioning, flexible landing on containers, trajectory intelligent control, intelligent tilting anti-snag safety protection and etc.
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
| Model | LJ35/40-23 | Light Type LJ40-23 |
| Lifting capacity (without spreader) (t) | 35,40 | 40 |
| Work level | A7,A8 | A6,A7 |
| Span (m) | 23.47 | 23.47 |
| Lifting Height (m) | 12.2~17.8 | 16.5 |
| Stack layer | 3/4~5/6 | 5/6 |
| Container size | 20',40',45' | 20',40',45' |
| Spreader rotation angle | ±5° | ±5° |
| Lifting (m/min) | 13/26,23/52 | 12/18,18/28 |
| Trolley travelling (m/min) | 50,70 | 24 |
| Crane travelling (m/min) | Full load-90, no load-130 | Full load-20, no load-40 |
| Max. wheel load (kN) | 310 | 310 |
Capacity : 35-40.5t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
Capacity : 35-40.5t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
Capacity : 35-40.5t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
