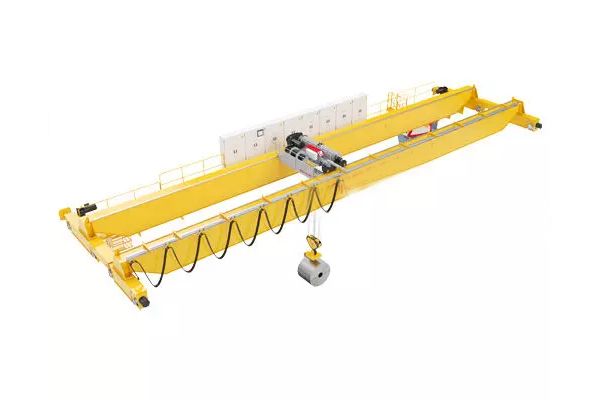

Coil handling cranes mainly handle metal bars, plates and coils during processing. It is an overhead crane usually used in steel mills and machinery manufacturing plants. This crane transports steel or coils from one production line to one. Depending on the type of material to be handled, our coil handling cranes can be customized to suit your needs.

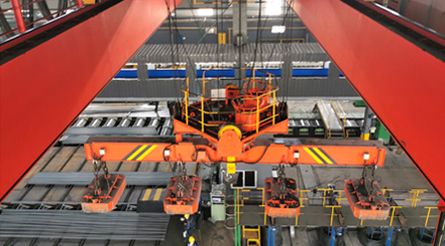

* It can be equipped with a variety of lifting devices according to the materials to be handled, such as coil grabs (C-type hooks) and magnets, which can provide slewing functions.
* Visual recognition system. The designed visual recognition system has the functions of scanning and identifying vehicle information and steel coils, precise positioning, realizing intelligent unmanned automatic loading and unloading vehicles, and safety protection of work areas.
* Put the swing control system on. The ground infrared equipment and the crane are interconnected to control the swing, and the handling process is smooth and efficient.
* Data cloud platform. The platform includes a visual warehouse management and scheduling system, a warehouse data management system, an intelligent production line scheduling system and an equipment status monitoring system, which can be connected to all intelligent warehouse management systems.
It employs bias-rail box-type structure, connects eith endbeam by high-strength, bolt ensuringeasy transportation.
Capacity:1-50t,Protection class F class,Single/Double speed,with traveling trolley and reducer,drum and motor include overload limiter switch
Mainly composed of anti-twisted box profiles and travel units.They can adapt to various load capacities and can becustomized according to customer requirements
A full range of safety systems, Products meet international standards,Customized services s will meet your needs
The technical parameters comply,with standars of FEM and HMl,With high rotational speed and low noise
Capacity:1-450t,Drop Forged Hook,Plain'C'type Swiveling on Thrust Bearing,equipped with belt buckie and wire ropes sheath
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
| Technical Specifications | |||
| Lifting Capacity | T | 16+16 | |
| Span | M | 26.5 | |
| Lifting Height | M | 7 | |
| Work Duty | A7 | ||
| Speed | Lifting | M/Min | 1.2~12 |
| Crane Traveling | 6.2~62 | ||
| Trolley Traveling | 20.6 | ||
| Power | KW | 315 | |
| Max Wheel Load | KN | 295 | |
| Recommand Track | QU100 | ||
| Power Supply | 3 Phase A.C.50Hz 380V | ||
Capacity : 5t - 80t Span : 5~31.5m Lifting height ： 6~30m Work level : A4, A5,A6,A7
Capacity : 5~25t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
Capacity : 5-1000t Span : 5~31.5m Lifting height ： 6~30m Work level : A6,A7,A8
JUREN GROUP is China's largest and the world' sthird-largest crane manufacturer
More than 100 service centres around the world, with morethan 500 R&D staff.
Five-star production site, hardcore workshop work doubly comfortable
Cranes are exported to more than 150 countries around theworld, providing common repair parts
By providing customers with value-added services, we wilmaximise the use of each customer's equipment.
By implementing the highest service standards in theindustry, we will achieve the highest level of customer
