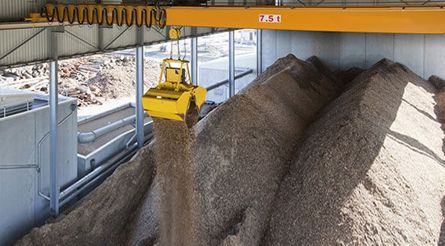

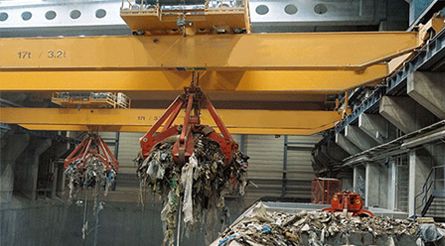

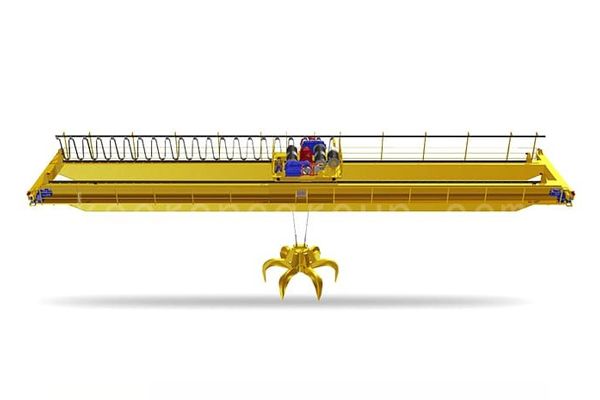

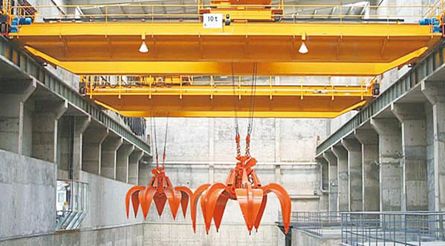

Automatic Garbage Grab Overhead Crane play a key role in modern incineration plants. Waste handling cranes require stable, fast and safe operation in demanding environments where the moment the waste arrives, the crane needs to stack, weigh, mix and deliver to the incinerator with maximum efficiency. Usually there are two waste handlers above the waste area, and one of the cranes is used as a backup to ensure minimal downtime.
Automatic Garbage Grab Overhead Crane, its usual lifting capacity is 4~32 tons, its typical span is 18~35 meters, our intelligent waste handling crane, with its excellent performance, can usually handle 800-2000 tons per day scrap.
As a professional waste disposal crane manufacturer, Juren Crane has 34 years of experience in the crane industry, we can provide you with a full range of grab cranes according to different needs.
You can choose according to your needs, or you can consult our technicians, we can provide you with the best solution for Waste Handling Cranes.
It employs bias-rail box-type structure, connects eith endbeam by high-strength, bolt ensuringeasy transportation.
Capacity:1-50t,Protection class F class,Single/Double speed,with traveling trolley and reducer,drum and motor include overload limiter switch
Mainly composed of anti-twisted box profiles and travel units.They can adapt to various load capacities and can becustomized according to customer requirements
A full range of safety systems, Products meet international standards,Customized services s will meet your needs
The technical parameters comply,with standars of FEM and HMl,With high rotational speed and low noise
Capacity:1-450t,Drop Forged Hook,Plain'C'type Swiveling on Thrust Bearing,equipped with belt buckie and wire ropes sheath
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
| Capacity (t/d) | 800-1,000 | 1,000-2,000 | 1,200-1,500 |
| Lifting Weight (t) | 8 | 10 | 12.5 |
| Grab Volume (m3) | 5 | 6.3 | 8 |
| Span (m) | 19.5-31.5 | 19.5-31.5 | 19.5-31.5 |
| Lifting Height (m) | 34 | 36 | 36 |
| Working Level | A8 | A8 | A8 |
| Lifting Speed (m/min) | 4.5-45 | 4.5-45 | 5-50 |
| Lower Speed (m/min) | 6-60 | 6-60 | 7-65 |
| Trolley Traveling (m/min) | 4.5-45 | 4.85-48.5 | 5-50 |
| Crane Traveling (m/min) | 4.8-48 | 6.5-65 | 7-70 |
| Rail | 43kg/m | QU70 | QU70 |
Capacity : 5~25t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
Capacity : 5-1000t Span : 5~31.5m Lifting height ： 6~30m Work level : A6,A7,A8
Capacity : 5t - 80t Span : 5~31.5m Lifting height ： 6~30m Work level : A4, A5,A6,A7
JUREN GROUP is China's largest and the world' sthird-largest crane manufacturer
More than 100 service centres around the world, with morethan 500 R&D staff.
Five-star production site, hardcore workshop work doubly comfortable
Cranes are exported to more than 150 countries around theworld, providing common repair parts
By providing customers with value-added services, we wilmaximise the use of each customer's equipment.
By implementing the highest service standards in theindustry, we will achieve the highest level of customer
