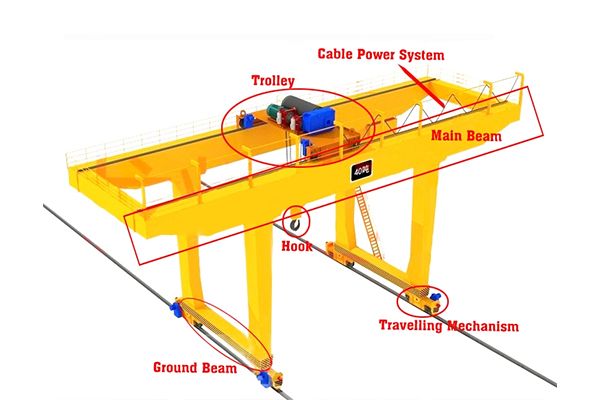

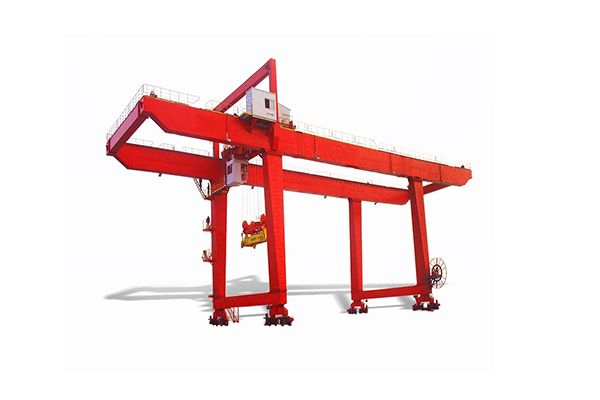

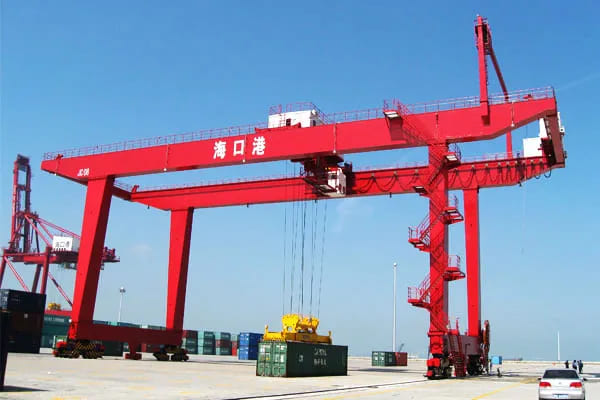

Automated Rail Mounted Gantry (ARMG)Crane is appropriate for handling, loading and unloading ISO container and railway wide container in container yard or transfer station such as port, wharf, railway and logistics. Supported by multiple steel wheels and powered by electricity, it consists of gantry mechanism, trolley assembly, gantry frame, power system and special container spreader.
*The design, manufacture and inspection comply with Chinese standard and international standards such as FEM, DIN, IEC, AWS and etc. Juren’s RMG has the characteristics of multiple function, high efficiency, stability, reliability, wide range of operation, easy operation and maintenance.
*It is also completed with safety indication and overload protection device to provide maximum safety for operators and equipment. The electric drive adopts fully digital AC variable frequency and PLC speed control technology with flexible control and high accuracy. Standard bought-in components from well-known brands at home and abroad ensure overall quality.
It employs bias-rail box-type structure, connects eith endbeam by high-strength, bolt ensuringeasy transportation.
Capacity:1-50t,Protection class F class,Single/Double speed,with traveling trolley and reducer,drum and motor include overload limiter switch
Mainly composed of anti-twisted box profiles and travel units.They can adapt to various load capacities and can becustomized according to customer requirements
A full range of safety systems, Products meet international standards,Customized services s will meet your needs
The technical parameters comply,with standars of FEM and HMl,With high rotational speed and low noise
Capacity:1-450t,Drop Forged Hook,Plain'C'type Swiveling on Thrust Bearing,equipped with belt buckie and wire ropes sheath
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
| Model | LJ35/40-23 | Light Type LJ40-23 |
| Lifting capacity (without spreader) (t) | 35,40 | 40 |
| Work level | A7,A8 | A6,A7 |
| Span (m) | 23.47 | 23.47 |
| Lifting Height (m) | 12.2~17.8 | 16.5 |
| Stack layer | 3/4~5/6 | 5/6 |
| Container size | 20',40',45' | 20',40',45' |
| Spreader rotation angle | ±5° | ±5° |
| Lifting (m/min) | 13/26,23/52 | 12/18,18/28 |
| Trolley travelling (m/min) | 50,70 | 24 |
| Crane travelling (m/min) | Full load-90, no load-130 | Full load-20, no load-40 |
| Max. wheel load (kN) | 310 | 310 |
Capacity : 5-80t Span : 5~31.5m Lifting height ： 6~30m Work level : A5,A6,A7
Capacity : 35-40.5t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
Capacity : 5 ~50t Span : 5~31.5m Lifting height ： 6~30m Work level : A5,A6,A7,A8
