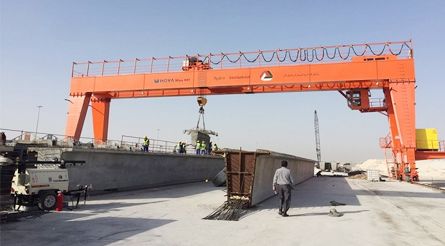

Juren heavy gantry crane is a large loading machine widely used in open air material handling. It has the advantages of large lifting weight, large working space, high utilization rate of freight yard area, less investment in infrastructure and low operating cost. The crane can be divided into A type, U type, L type, O type and C type according to the shape; According to the cantilever type can be divided into no cantilever, single cantilever and double cantilever, etc.
Juren with tens of thousands of cases of experience and knowledge, lifting industry leading technology, the most large-scale manufacturing and rapid delivery of the absolute advantage, according to your different needs and operating environment, to provide you with the safest, the most stable and the highest price of the full range of heavy gantry crane products, and according to your special needs customized services, to meet your various applications, Improve your efficiency and save costs.
You can choose according to your needs, or you can consult our experts, we can provide you with the best solution for Heavy Duty Gantry Crane.
* JUREN double beam hook heavy gantry crane, suitable for open yard, general loading and unloading，Lifting and lifting work.
* Gantry and trolley travel mechanism adopts three - in - one reducer, convenient maintenance.
* Wind alarm, anti - breaking shaft, anti tipping and other safety measures are complete.
* Lifting Capacity is 20-500 ton.
It employs bias-rail box-type structure, connects eith endbeam by high-strength, bolt ensuringeasy transportation.
Capacity:1-50t,Protection class F class,Single/Double speed,with traveling trolley and reducer,drum and motor include overload limiter switch
Mainly composed of anti-twisted box profiles and travel units.They can adapt to various load capacities and can becustomized according to customer requirements
A full range of safety systems, Products meet international standards,Customized services s will meet your needs
The technical parameters comply,with standars of FEM and HMl,With high rotational speed and low noise
Capacity:1-450t,Drop Forged Hook,Plain'C'type Swiveling on Thrust Bearing,equipped with belt buckie and wire ropes sheath
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
Capacity (t) | Span (m) | Lifting Height (m) | Work Duty | Main Hoist Speed | Aux.Hoist Speed | Cross Travel Speed | Long Travel Speed | Rail | Total Power (Kw) |
10 | 18～35 | 10 | A5 | 0.78-7.8 | 3.3-33 | 3-30 | 43kg/m | 21.74 | |
20/5 | 18～35 | 10 | A5 | 0.6-6 | 0.78-7.8 | 3.5-35 | 3-30 | 43kg/m | 39.7 |
32/5 | 18～26 | 10 | A5 | 0.5-5.2 | 0.78-7.8 | 3.1-31 | 3-30 | 43kg/m | 59 |
26～35 | 12 | ||||||||
50/10 | 18～26 | 10 | A5 | 0.4-3.9 | 0.78-7.8 | 3.6-36 | 3-30 | 43kg/m | 71.4 |
26～35 | 12 | ||||||||
75~1000 | Customized | ||||||||
Capacity : 5-120t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
Capacity : 50-500t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
Capacity : 5-1000t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
JUREN GROUP is China's largest and the world' sthird-largest crane manufacturer
More than 100 service centres around the world, with morethan 500 R&D staff.
Five-star production site, hardcore workshop work doubly comfortable
Cranes are exported to more than 150 countries around theworld, providing common repair parts
By providing customers with value-added services, we wilmaximise the use of each customer's equipment.
By implementing the highest service standards in theindustry, we will achieve the highest level of customer
