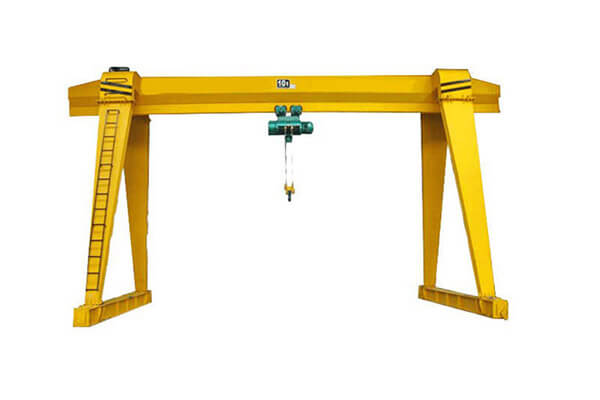

JUREN Single girder gantry crane can offer different type design of single girder gantry crane like box girder, truss girder, L shape girder
This Single Girder Gantry Cranes is widely applied to do loading and unloading work in outdoor. Such as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on.
It employs bias-rail box-type structure, connects eith endbeam by high-strength, bolt ensuringeasy transportation.
Capacity:1-50t,Protection class F class,Single/Double speed,with traveling trolley and reducer,drum and motor include overload limiter switch
Mainly composed of anti-twisted box profiles and travel units.They can adapt to various load capacities and can becustomized according to customer requirements
A full range of safety systems, Products meet international standards,Customized services s will meet your needs
The technical parameters comply,with standars of FEM and HMl,With high rotational speed and low noise
Capacity:1-450t,Drop Forged Hook,Plain'C'type Swiveling on Thrust Bearing,equipped with belt buckie and wire ropes sheath
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES

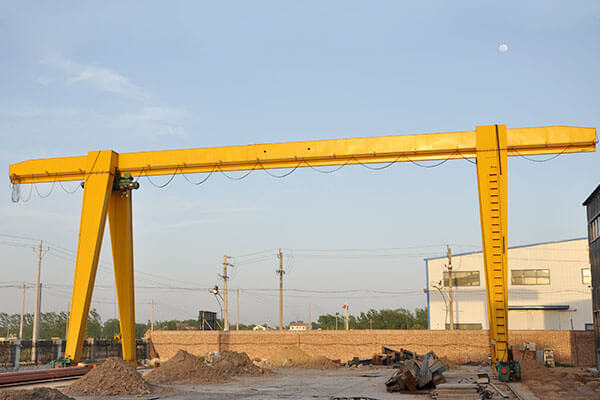

On May 7th, 2016, Single Girder Gantry Cranes has finished installation within 7 days in Philippines.
The Philippines customers plan to invest a Single Girder Gantry Cranes. After comparing the manufacturers and understanding the performance of products, they chose to sign an order with us.
In order to serve customers better, JUREN always provides installation guidance services. The company sent experienced technicians to assist in the installation and commissioning of the Single Girder Gantry Cranes, ensuring its safe and stable operation.
10t Single Girder Gantry Cranes installation in Thailand
Get Free Quote

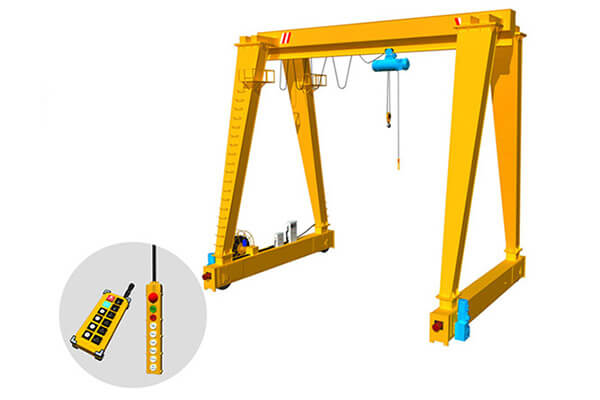

JUREN Single girder gantry crane can offer different type design of single girder gantry crane like box girder, truss girder, L shape girder
Simple and compact structure, steady performance.
Most economical option for light to medium-duty cranes.
Can be used where overhead runways are not practical.
Branding gear motor with IP55, F insulation class, IE3 Energy
Easier to install, service, and maintain
efficiency, over-heat protection, manual release bar, and electro-magnetic brake feature. The motor is controlled by inverter for smooth running.
which is usually used in factories and mines, workshops, station logistics sites, ports, docks, etc.
Great for facilities with low headroom
| Capacity | T | 3 | 5 | 10 | 16 | 20 |
|---|---|---|---|---|---|---|
| Span | m | 12, 16, 20, 24 | 12, 16, 20, 24, 30 | 12, 16, 20, 24, 30 | 12, 16, 20, 24, 30 | 12, 16, 20, 24, 30 |
| Lifting height | m | 6/9 | 6/9, 9 | 6/9, 9 | 6/9, 9 | 6/9, 9 |
| Lifting speed | m/min | 8 0.8/8 | 8 0.8/8 | 7 0.7/7 | 3.5 0.35/3.5 | 3.5 0.35/3.5 |
| Trolley travelling speed | m/min | 20 | 20 | 20 | 20 | 20 |
| Crane travelling speed | m/min | 20 | 20 | 20 | 20 | 20 |
| Max. Wheel load | KN | 37/42, 40/46, 44/50, 48/54 | 54/59, 62/67, 70/75, 78/83, 96 | 97/102, 105/110, 113/118, 121/126, 149 | 143/150, 152/159, 165/174, 169/176, 190 | 198/206, 218/226, 232/240, 265/273, 302/310 |
| Rail recommended | Model | P34, P38 | P24, P38 | P38, P43 | P38, P43 | P38, P43 |
| Total weight | t | 7.4/8.7, 8.6/9.9, 11.3/12.6, 13/14.3 | 8.4/9.8, 9.6/11.2, 13.6/15.2, 18.3/20.4 | 14.8/16.1, 16.7/18.7, 19.6/21.6, 24.4/26.6, 30.1 | 15.2/18.2, 18.9/21.9, 21.8/24.8, 27.0/30.0, 32.8 | 16.8/17.5, 21.6/22.4, 25.0/25.9, 31.0/32.1, 38.0/39.2 |
| Crane base distance | B1 | 5000/6000, 6000/7000 | 5500/6500, 6500/7500 | 5500/6500, 6500/7500 | 6500/7000, 7500/8500, 8500 | 6500/7000, 7500/8500 |
| Crane width | B2 | 5400/6400, 6500/7500 | 6000/7000, 7100/8100 | 6000/7100, 7100/8100 | 7000/7500, 8200/9200, 9200 | 7000/7500, 8200/9200 |
Capacity : 5-20t Span : 5~31.5m Lifting height ： 6~30m Work level : A6,A7,A8
Capacity : 5-20t Span : 5~31.5m Lifting height ： 6~30m Work level : A2,A3,A4,A5
Capacity : 5-120t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
