Coil handling cranes mainly handle metal bars, plates and coils during processing. It is an overhead crane usually used in steel mills and machinery manufacturing plants. This crane transports steel or coils from one production line to one. Depending on the type of material to be handled, our coil handling cranes can be customized to suit your needs.

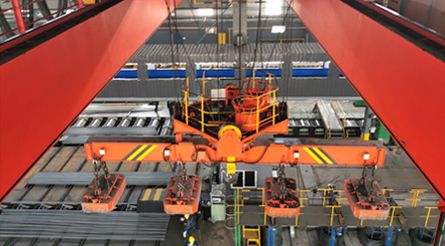

* It can be equipped with a variety of lifting devices according to the materials to be handled, such as coil grabs (C-type hooks) and magnets, which can provide slewing functions.
* Visual recognition system. The designed visual recognition system has the functions of scanning and identifying vehicle information and steel coils, precise positioning, realizing intelligent unmanned automatic loading and unloading vehicles, and safety protection of work areas.
* Put the swing control system on. The ground infrared equipment and the crane are interconnected to control the swing, and the handling process is smooth and efficient.
* Data cloud platform. The platform includes a visual warehouse management and scheduling system, a warehouse data management system, an intelligent production line scheduling system and an equipment status monitoring system, which can be connected to all intelligent warehouse management systems.

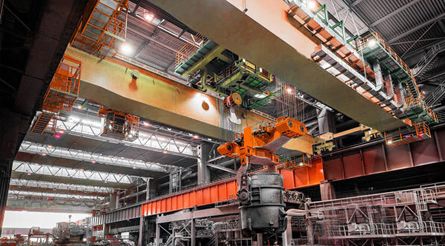

Because the casting crane works in the harsh environment of high temperature dust, the safety and reliability of the crane are much higher than that of the ordinary bridge crane.

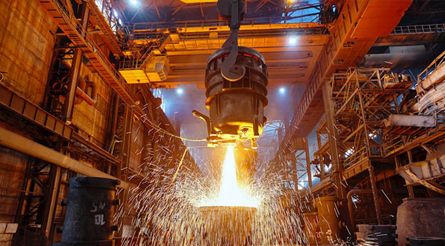

The main hook is a gantry spreader with two plate hooks, which is used for lifting and handling the ladle; the auxiliary hook is a forging hook or a plate hook, which is used for dumping molten steel, molten iron or other lifting items.
Casting crane takes heat insulation and radiation protection measures for the main beam, sub-main beam, electrical room, etc., in order to reduce the influence of external heat on its baking, because it needs to work continuously at high temperatures.
our motors and power supplies are designed with redundancy. If one of the motors or a group of electronic control devices fails, the other group of driving devices can be used under the rated lifting capacity. Complete a work cycle.
The highlights of this machine are integral processing technology and secondary assembly technology. For the first time assembly, the welding components sizes are fixed and adopt flat position welding to ensure the quality of welding seams.
The secondary assembly is to release welding stress before the integral processing of the bridge to ensure the stability and accuracy of product process precision.
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
| Technical Specifications | |||
| Lifting Capacity | T | 16+16 | |
| Span | M | 26.5 | |
| Lifting Height | M | 7 | |
| Work Duty | A7 | ||
| Speed | Lifting | M/Min | 1.2~12 |
| Crane Traveling | 6.2~62 | ||
| Trolley Traveling | 20.6 | ||
| Power | KW | 315 | |
| Max Wheel Load | KN | 295 | |
| Recommand Track | QU100 | ||
| Power Supply | 3 Phase A.C.50Hz 380V | ||
Capacity : 5t - 80t Span : 5~31.5m Lifting height ： 6~30m Work level : A4, A5,A6,A7
Capacity : 5-320t Span : 5~31.5m Lifting height ： 6~30m Work level : A5,A6,A7
Capacity : 5-320t Span : 5~31.5m Lifting height ： 6~30m Work level : A5, A6,A7
