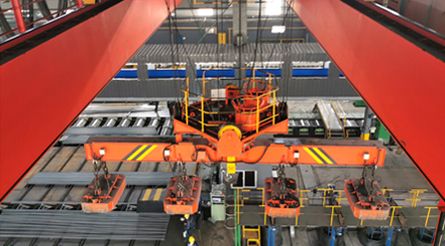

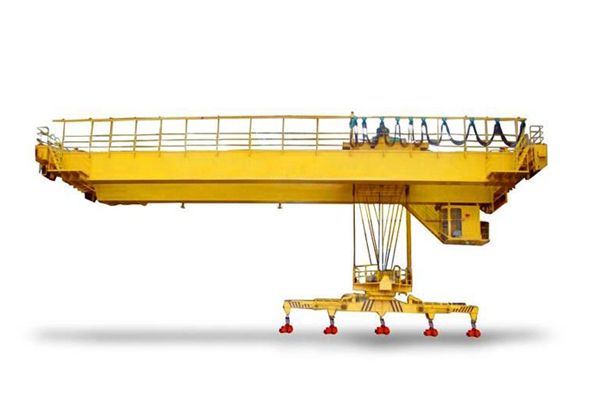

Electromagnetic girder bridge cranes are usually bridge cranes with electromagnets, which are used in many machinery manufacturing plants and steel plants. It is a special crane for handling and moving steel, steel plate and steel pipe mainly by electromagnetic. It is mainly used for stacking the finished steel plates, billets or profiles from conveying to the production line of the continuous rolling workshop, and for loading and unloading vehicles or stacking operations in the finished product warehouse.
* The rotating part of the hook should be locked with a screw when the electromagnetic board is working;
* The box beam structure adopts robot high-strength welding;
* Wheels, wire rope drums, gears and couplings are all made of CNC, with high quality;
* Independent control system: wireless control or cab control;
* Lifting overload protection device;
* Polyurethane buffer;
* Crane travel limit switch;
* Decompression protection;
* Emergency stop device;
* Current overload protector;

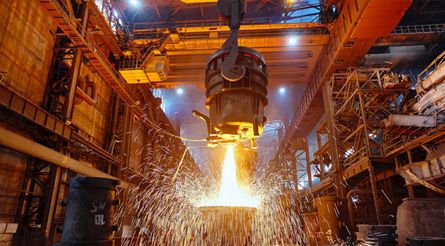

Because the casting crane works in the harsh environment of high temperature dust, the safety and reliability of the crane are much higher than that of the ordinary bridge crane.

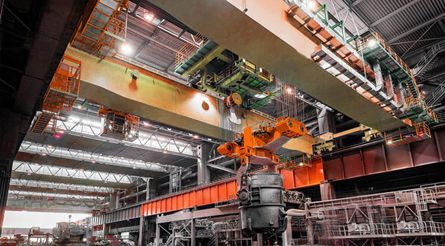

The main hook is a gantry spreader with two plate hooks, which is used for lifting and handling the ladle; the auxiliary hook is a forging hook or a plate hook, which is used for dumping molten steel, molten iron or other lifting items.
Casting crane takes heat insulation and radiation protection measures for the main beam, sub-main beam, electrical room, etc., in order to reduce the influence of external heat on its baking, because it needs to work continuously at high temperatures.
our motors and power supplies are designed with redundancy. If one of the motors or a group of electronic control devices fails, the other group of driving devices can be used under the rated lifting capacity. Complete a work cycle.
The highlights of this machine are integral processing technology and secondary assembly technology. For the first time assembly, the welding components sizes are fixed and adopt flat position welding to ensure the quality of welding seams.
The secondary assembly is to release welding stress before the integral processing of the bridge to ensure the stability and accuracy of product process precision.
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
| Capacity | t | 7.5+7.5 | 10+10 | 16+16 | 17.5+17.5 |
| Span | m | 28 | 28 | 28 | 28 |
| Work duty | A7 | A7 | A7 | A7 | |
| Max. lift height | m | 12 | 16 | 16 | 16 |
| Lift speed | m/min | 12.9 | 11.9 | 12 | 12 |
| Trolley speed | m/min | 42.7 | 38 | 37.9 | 39.8 |
| Crane speed | m/min | 100 | 91.3 | 114 | 114 |
| Hoisting motor power | KW | YZR280M-10/55 | YZR315M-10/63 | YZR355M-10/90 | YZR355M-10/90 |
| Trolley traveling power | KW | YZR200L-8/2×15 | YZR160M2 | YZR160L-6/11 | YZR160L-6/11 |
| Crane traveling power | KW | YZR200L-8/2×15 | YZR180L-82×15 | YZR225M-8/22×2 | YZRM-8/22×2 |
| Magnet weight | kg | ||||
| Trolley weight | kg | 14280 | 14980 | 16.23 | 16.50 |
| Crane weight | kg | 54280 | 62865 | 89.5 | 100.6 |
| Max. wheel load | KN | 240 | 280 | 39.0 | 40.6 |
| Rail recommended | kg/m | 38.43 | 38.43 | QU70 | QU100 |
| Power supply | AC 3P | 380v 500Hz | 380v 50Hz | 380v 50Hz | 380 50Hz |
Capacity : 5-32t Span : 5~31.5m Lifting height ： 6~30m Work level : A5, A6,A7
Capacity : 5-320t Span : 5~31.5m Lifting height ： 6~30m Work level : A5, A6,A7
Capacity : 5-320t Span : 5~31.5m Lifting height ： 6~30m Work level : A5, A6,A7
