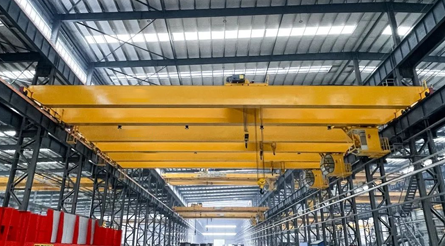

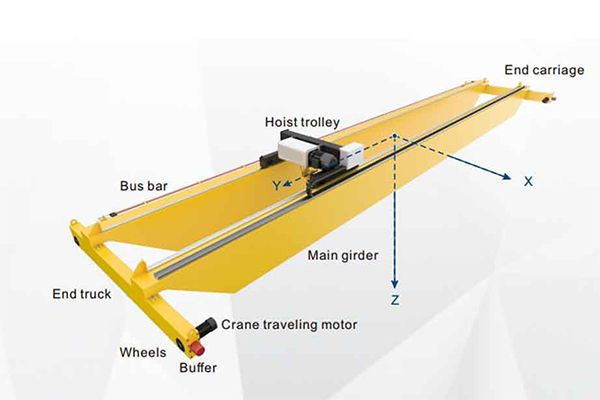

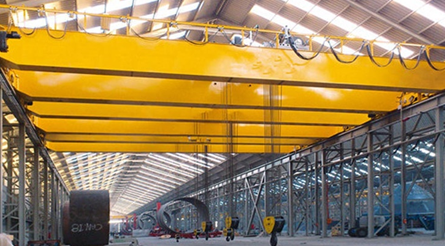

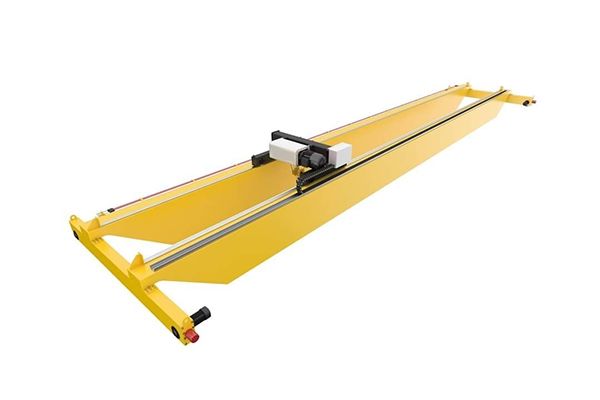

The double girder European bridge crane has the design superiority, can help you to reduce the factory construction initial investment, enhances the productivity, reduces the daily maintenance workload, reduces the energy consumption, obtains the higher investment return.
European Double Overhead gantry crane is of advanced technology, whose design is based on international standard: FEM (Europe), DIN (Germany), ISO(International), equipped with many advantages such as: strong rigidity, light dead weight, low power, outstanding structure design etc. The configurations are very advanced, such as Schneider electricals, ABM/Nord / SEW triple gear motor (three in one: motor, gear box, brake), galvanized high strength wire rope, self-adjusted disk brake, hard tooth reducer, programmable lifting limit switch, and so on.
Suitable for any environment ( High Temperature, Explosion Proof and so on);
Long Life Span: 30-50years;
Easy for Installation and maintenance;
Reasonable structure and strong rigidity;
The speed can be frequency inverter speed control;
Control method is cabin control or remote control;
Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
Double Girder Overhead Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
Our company uses standard thickness steel plates, automatic unloading of CNC machine tools, advanced welding technology, and good rigidity and stability of the main beam, without deformation and uneven force.
Our company adopts high quality steel wire rope, high abrasion resistance, able to withstand repeated bending, prolonging the service life, and our customers' feedback has zero failure rate.
Our company adopts 50 silicon manganese steel wheels, high hardness, high wear resistance, advanced assembly process.
Our company adopts high-strength alloy steel gears to ensure the gear hardness and wear resistance. Adopting brand-name high-quality bearings, good sealing, strong load-bearing capacity, long life.
Our company adopts high-quality copper coil, silicon steel stator, rotor, assembly tight. Smooth-running motors can meet the high load use, with excellent heat dissipation performance, reducing the risk of overheating.
Our company uses high quality forged alloy steel hooks to ensure that the hooks will not be deformed or worn out under heavy loads.
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
| Model | QD general-purpose overhead crane | |||||||||||
| Lifting capacity | t | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | 75/20 | 100/20 | |||
| Max. lifting height | Main lifting | m | 16 | 16 | 16 | 12 | 16 | 12 | 20 | 22 | ||
| Aux. lifting | m | 18 | 14 | 18 | 16 | 22 | 22 | |||||
| Span | m | 10.5-31.5 | 13.5-31.5 | 13-31 | ||||||||
| Lifting speed | Main lifting | A5 | m/min | 11.3 | 8.5 | 7.9 | 7.2 | 7.5 | 5.9 | 6.1 | 3.9 | |
| A6 | 15.6 | 10.4 | 10.7 | 9.8 | 9.5 | 7.8 | 6.1 | 4.9 | ||||
| Aux. lifting | 14.6 | 15.5 | 15.5 | 10.4 | 7.2 | 7.2 | ||||||
| Trolley traveling speed | m/min | 37.2 | 43.8 | 44.6 | 44.6 | 42.4 | 38.5 | 38.4 | 33.86 | |||
| Crane traveling speed | A5 | m/min | 89.8(91.8) | 89.8(91.9, 84.7) | 84.7(87.6) | 84.7(87.6) | 87.6(74.2, 74.6) | 74.6 | 65 | 65.7 | ||
| A6 | 92.7(93.7) | 92.7(93.7, 86.5) | 76(89) | 76(89) | 89(75.3) | 75(76.6) | 66.2 | 65.7 | ||||
| Power | 3P 380V 50Hz or others | |||||||||||
Capacity : 50t - 800t Span : 5~31.5m Lifting height ： 6~30m Work level : A4, A5,A6,A7
Capacity : 50-800t Span : 5~31.5m Lifting height ： 6~30m Work level : A5,A6,A7
Capacity : 5-1000t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
