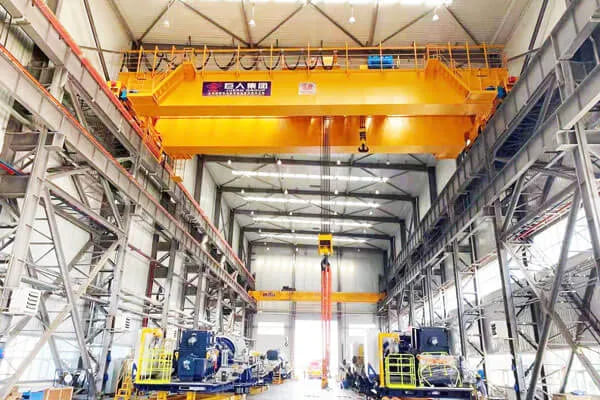

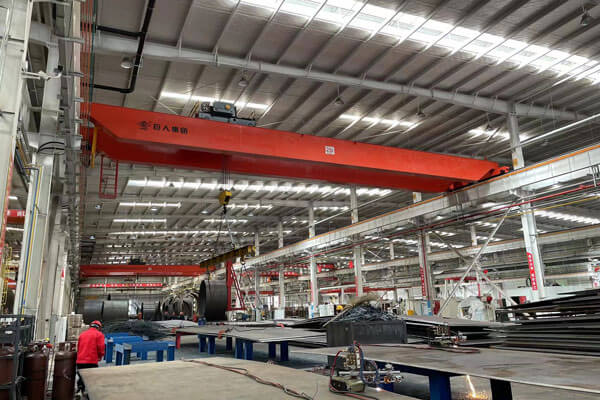

Double girder overhead crane is designed to move, lift or transport heavy materials, which is are widely used for transferring heavy goods in factory, warehouse, workshop, processing plant, shipyard, and so on. 10-1000ton overhead crane we can provide as your detailed needs.
The double girder overhead crane is designed and manufactured according to European FEM standards. It travels on a supporting structure of a building.
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
On May 7th, 2021, Heavy Duty Overhead Cranes has finished installation within 7 days in Indonesia.
The Indonesia customers plan to invest a Heavy Duty Overhead Cranes. After comparing the manufacturers and understanding the performance of products, they chose to sign an order with us.
In order to serve customers better, JUREN always provides installation guidance services. The company sent experienced technicians to assist in the installation and commissioning of the Heavy Duty Overhead Cranes, ensuring its safe and stable operation.
Heavy Duty and High Efficient;
Suitable for any environment ( High Temperature, Explosion Proof and so on);
Long Life Span: 30-50years;
Easy for Installation and maintenance;
Reasonable structure and strong rigidity;
The speed can be frequency inverter speed control;
Control method is cabin control or remote control;
Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
Double Girder Overhead Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
| Model | Heavy Duty Overhead Cranes | |||||||||||
| Lifting capacity | t | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | 75/20 | 100/20 | |||
| Max. lifting height | Main lifting | m | 16 | 16 | 16 | 12 | 16 | 12 | 20 | 22 | ||
| Aux. lifting | m | 18 | 14 | 18 | 16 | 22 | 22 | |||||
| Span | m | 10.5-31.5 | 13.5-31.5 | 13-31 | ||||||||
| Lifting speed | Main lifting | A5 | m/min | 11.3 | 8.5 | 7.9 | 7.2 | 7.5 | 5.9 | 6.1 | 3.9 | |
| A6 | 15.6 | 10.4 | 10.7 | 9.8 | 9.5 | 7.8 | 6.1 | 4.9 | ||||
| Aux. lifting | 14.6 | 15.5 | 15.5 | 10.4 | 7.2 | 7.2 | ||||||
| Trolley traveling speed | m/min | 37.2 | 43.8 | 44.6 | 44.6 | 42.4 | 38.5 | 38.4 | 33.86 | |||
| Crane traveling speed | A5 | m/min | 89.8(91.8) | 89.8(91.9, 84.7) | 84.7(87.6) | 84.7(87.6) | 87.6(74.2, 74.6) | 74.6 | 65 | 65.7 | ||
| A6 | 92.7(93.7) | 92.7(93.7, 86.5) | 76(89) | 76(89) | 89(75.3) | 75(76.6) | 66.2 | 65.7 | ||||
| Power | 3P 380V 50Hz or others | |||||||||||
Capacity : 5-1000t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
Capacity : 5-100t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
Capacity : 5-1000t Span : 5~31.5m Lifting height ： 6~30m Work level : A6,A7,A8
