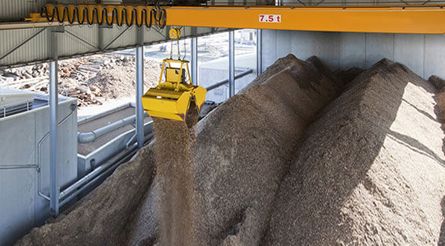

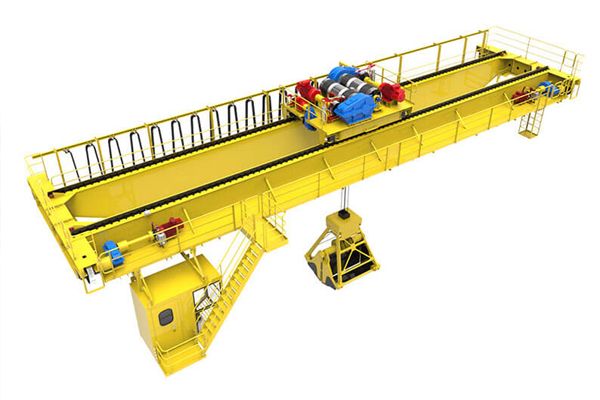

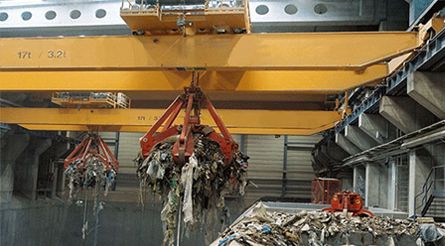

Automated Grab Bucket Overhead Crane are widely used in power plants, freight yards, workshops, wharves, etc., to load and unload bulk materials. For example, this crane can be used to grab the garbage in the wastes incineration plants, to grab metal scrap in steel plants, to grab coal/ore/cereals in bulk material handling sites.
Through advanced technology, we provide multiple series of grab cranes at cost-effective price according to different industries. Our grab cranes have maximize productivity in a smooth manner with high-performance load capacity for lifting bulk materials.
The production guidelines for each of our cranes are researched, refined and tested. According to its different functions, it can be divided into clamshell grabs, orange leather grabs, hydraulic grabs, etc. It features radio remote control to maximize crane productivity：
Adopt advanced anti-sway control technology;
Hydraulic grab and lift control technology;
Fault self-diagnosis and remote monitoring and upgrading technology;
It employs bias-rail box-type structure, connects eith endbeam by high-strength, bolt ensuringeasy transportation.
Capacity:1-50t,Protection class F class,Single/Double speed,with traveling trolley and reducer,drum and motor include overload limiter switch
Mainly composed of anti-twisted box profiles and travel units.They can adapt to various load capacities and can becustomized according to customer requirements
A full range of safety systems, Products meet international standards,Customized services s will meet your needs
The technical parameters comply,with standars of FEM and HMl,With high rotational speed and low noise
Capacity:1-450t,Drop Forged Hook,Plain'C'type Swiveling on Thrust Bearing,equipped with belt buckie and wire ropes sheath
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
| Capacity (t/d) | 800-1,000 | 1,000-2,000 | 1,200-1,500 |
| Lifting Weight (t) | 8 | 10 | 12.5 |
| Grab Volume (m3) | 5 | 6.3 | 8 |
| Span (m) | 19.5-31.5 | 19.5-31.5 | 19.5-31.5 |
| Lifting Height (m) | 34 | 36 | 36 |
| Working Level | A8 | A8 | A8 |
| Lifting Speed (m/min) | 4.5-45 | 4.5-45 | 5-50 |
| Lower Speed (m/min) | 6-60 | 6-60 | 7-65 |
| Trolley Traveling (m/min) | 4.5-45 | 4.85-48.5 | 5-50 |
| Crane Traveling (m/min) | 4.8-48 | 6.5-65 | 7-70 |
| Rail | 43kg/m | QU70 | QU70 |
Capacity : 5-80t Span : 5~31.5m Lifting height ： 6~30m Work level : A5,A6,A7
Capacity : 5-50t Span : 5~31.5m Lifting height ： 6~30m Work level : A6,A7,A8
Capacity : 5t - 80t Span : 5~31.5m Lifting height ： 6~30m Work level : A4, A5,A6,A7
JUREN GROUP is China's largest and the world' sthird-largest crane manufacturer
More than 100 service centres around the world, with morethan 500 R&D staff.
Five-star production site, hardcore workshop work doubly comfortable
Cranes are exported to more than 150 countries around theworld, providing common repair parts
By providing customers with value-added services, we wilmaximise the use of each customer's equipment.
By implementing the highest service standards in theindustry, we will achieve the highest level of customer
