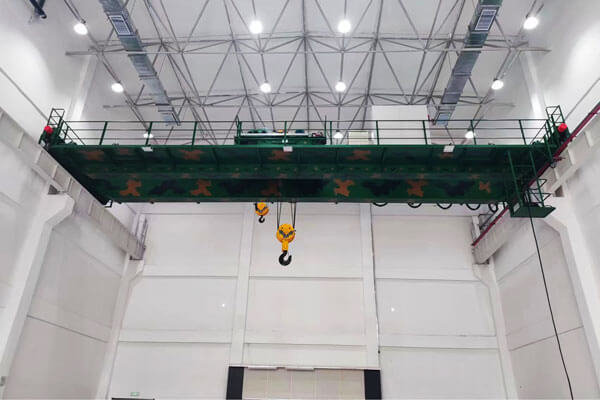

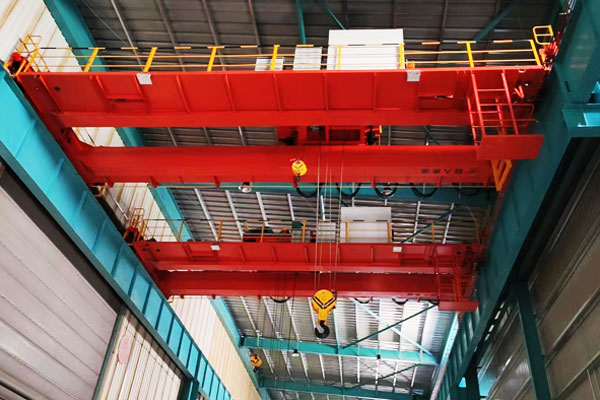

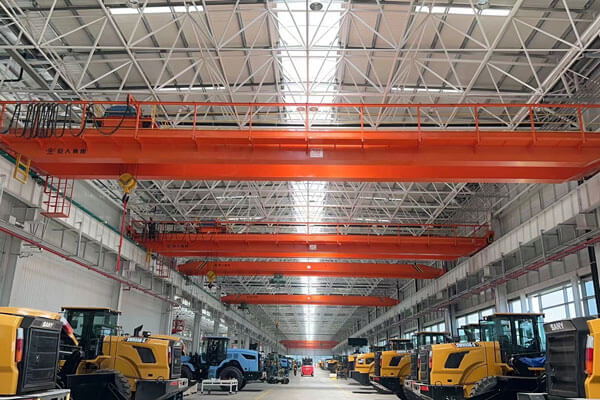

Double girder overhead cranes are designed to handle heavier capacity since they are robust, durable, and customized around your demands and application conditions.
For different loads or lifting requirement, the double girder crane is usually equipped with different lifting devices such as crane hook,including the ladle hook, C hook, Rotating hook, Crane grab, including clamshell grab, orange peel grab, mechanical grab, motorized grab, hydraulic grab, and types of rope grab, Magnetic,including magnetic chuck, magnetic beam spreader, permanent magnetic, and other types of specially designed devices such as container spreader, vacuum lifter, and isolated lifting devices, etc.
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
On May 17th, 2011, 50t Overhead Cranes has finished installation within 37 days in Ukraine.
The Ukraine customers plan to invest a 50t Overhead Cranes. After comparing the manufacturers and understanding the performance of products, they chose to sign an order with us.
In order to serve customers better, JUREN always provides installation guidance services. The company sent experienced technicians to assist in the installation and commissioning of the 50t Overhead Cranes, ensuring its safe and stable operation.
Heavy Duty and High Efficient;
Suitable for any environment ( High Temperature, Explosion Proof and so on);
Long Life Span: 30-50years;
Easy for Installation and maintenance;
Reasonable structure and strong rigidity;
The speed can be frequency inverter speed control;
Control method is cabin control or remote control;
Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
Double Girder Overhead Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
| Model | 5-100t Overhead Cranes | |||||||||||
| Lifting capacity | t | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | 75/20 | 100/20 | |||
| Max. lifting height | Main lifting | m | 16 | 16 | 16 | 12 | 16 | 12 | 20 | 22 | ||
| Aux. lifting | m | 18 | 14 | 18 | 16 | 22 | 22 | |||||
| Span | m | 10.5-31.5 | 13.5-31.5 | 13-31 | ||||||||
| Lifting speed | Main lifting | A5 | m/min | 11.3 | 8.5 | 7.9 | 7.2 | 7.5 | 5.9 | 6.1 | 3.9 | |
| A6 | 15.6 | 10.4 | 10.7 | 9.8 | 9.5 | 7.8 | 6.1 | 4.9 | ||||
| Aux. lifting | 14.6 | 15.5 | 15.5 | 10.4 | 7.2 | 7.2 | ||||||
| Trolley traveling speed | m/min | 37.2 | 43.8 | 44.6 | 44.6 | 42.4 | 38.5 | 38.4 | 33.86 | |||
| Crane traveling speed | A5 | m/min | 89.8(91.8) | 89.8(91.9, 84.7) | 84.7(87.6) | 84.7(87.6) | 87.6(74.2, 74.6) | 74.6 | 65 | 65.7 | ||
| A6 | 92.7(93.7) | 92.7(93.7, 86.5) | 76(89) | 76(89) | 89(75.3) | 75(76.6) | 66.2 | 65.7 | ||||
| Power | 3P 380V 50Hz or others | |||||||||||
Capacity : 50t - 800t Span : 5~31.5m Lifting height ： 6~30m Work level : A4, A5,A6,A7

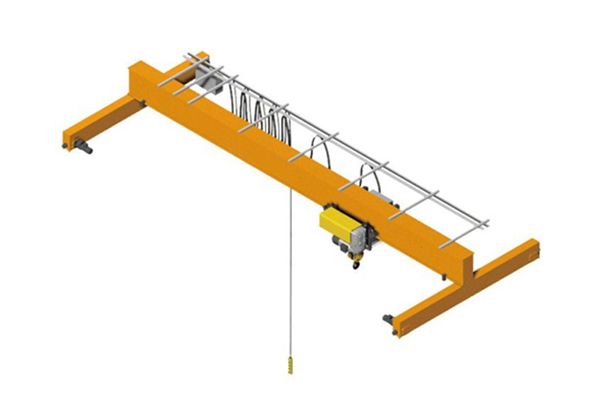

Capacity : 1~20t Span : 5~31.5m Lifting height ： 6~30m Work level : A2,A3,A4,A5

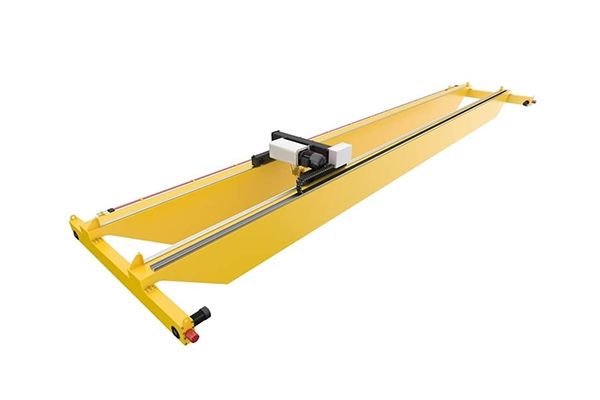

Capacity : 1~20t Span : 5~31.5m Lifting height ： 6~30m Work level : A2,A3,A4,A5
