We provide an extensive range of overhead cranes , for light&heavy duty applications and demanding processes . JUREN'S overhead cranes utilize the latest technology to help increase the safety and productivity of our customer’s business.Our industrial overhead cranes represent high-level overhead cranes quality starting from a single component all the way to an entire process ; but if it isn ' t , we can also provide a tailor - made solution for your processes .

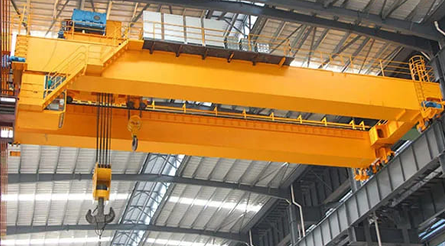

For different loads or lifting requirement, the double girder crane is usually equipped with different lifting devices such as crane hook,including the ladle hook, C hook, Rotating hook, Crane grab, including clamshell grab, orange peel grab, mechanical grab, motorized grab, hydraulic grab, and types of rope grab, Magnetic,including magnetic chuck, magnetic beam spreader, permanent magnetic, and other types of specially designed devices such as container spreader, vacuum lifter, and isolated lifting devices, etc.
Our company uses standard thickness steel plates, automatic unloading of CNC machine tools, advanced welding technology, and good rigidity and stability of the main beam, without deformation and uneven force.
Our company adopts high quality steel wire rope, high abrasion resistance, able to withstand repeated bending, prolonging the service life, and our customers' feedback has zero failure rate.
Our company adopts 50 silicon manganese steel wheels, high hardness, high wear resistance, advanced assembly process.
Our company adopts high-strength alloy steel gears to ensure the gear hardness and wear resistance. Adopting brand-name high-quality bearings, good sealing, strong load-bearing capacity, long life.
Our company adopts high-quality copper coil, silicon steel stator, rotor, assembly tight. Smooth-running motors can meet the high load use, with excellent heat dissipation performance, reducing the risk of overheating.
Our company uses high quality forged alloy steel hooks to ensure that the hooks will not be deformed or worn out under heavy loads.
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
| Model | 5-100t Overhead Cranes | |||||||||||
| Lifting capacity | t | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | 75/20 | 100/20 | |||
| Max. lifting height | Main lifting | m | 16 | 16 | 16 | 12 | 16 | 12 | 20 | 22 | ||
| Aux. lifting | m | 18 | 14 | 18 | 16 | 22 | 22 | |||||
| Span | m | 10.5-31.5 | 13.5-31.5 | 13-31 | ||||||||
| Lifting speed | Main lifting | A5 | m/min | 11.3 | 8.5 | 7.9 | 7.2 | 7.5 | 5.9 | 6.1 | 3.9 | |
| A6 | 15.6 | 10.4 | 10.7 | 9.8 | 9.5 | 7.8 | 6.1 | 4.9 | ||||
| Aux. lifting | 14.6 | 15.5 | 15.5 | 10.4 | 7.2 | 7.2 | ||||||
| Trolley traveling speed | m/min | 37.2 | 43.8 | 44.6 | 44.6 | 42.4 | 38.5 | 38.4 | 33.86 | |||
| Crane traveling speed | A5 | m/min | 89.8(91.8) | 89.8(91.9, 84.7) | 84.7(87.6) | 84.7(87.6) | 87.6(74.2, 74.6) | 74.6 | 65 | 65.7 | ||
| A6 | 92.7(93.7) | 92.7(93.7, 86.5) | 76(89) | 76(89) | 89(75.3) | 75(76.6) | 66.2 | 65.7 | ||||
| Power | 3P 380V 50Hz or others | |||||||||||
Capacity : 5-1000t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
Capacity : 5-100t Span : 5~31.5m Lifting height ： 6~30m Work level : A6,A7,A8
Capacity : 5-1000t Span : 5~31.5m Lifting height ： 6~30m Work level : A6,A7,A8
