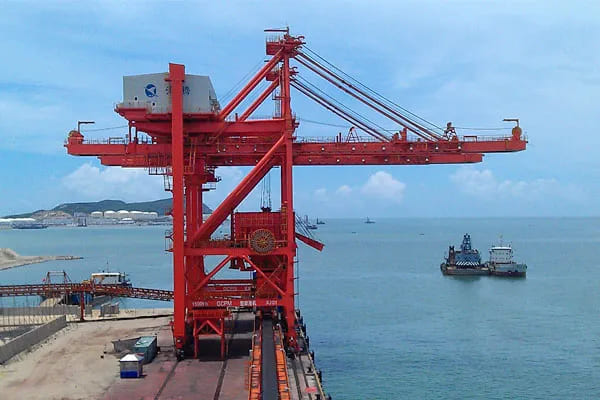

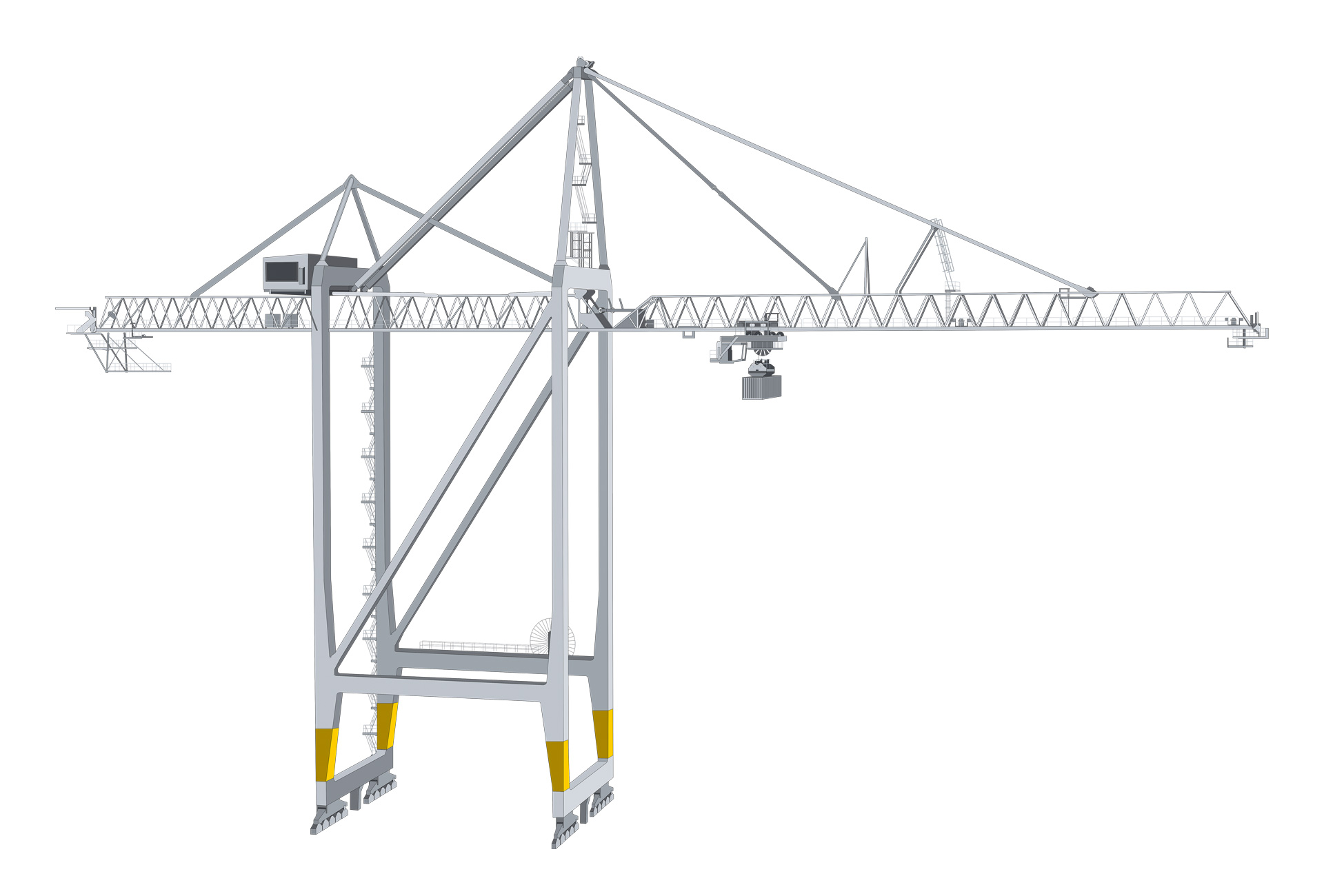

Juren design, manufacture and inspection of STS crane comply with Chinese standard and international standards such as FEM, DIN, IEC, AWS and etc. It is mainly composed of electrical control system, metal structure, lifting mechanism, trolley traveling mechanism, boom hoist mechanism, crane traveling mechanism, trolley assembly, anti-snag protection device and other auxiliary device.
*CMS intelligent service management system, real-time monitoring of running status.
*Applied core technologies such as automatic running positioning, flexible landing on containers, trajectory intelligent control, intelligent tilting anti-snag safety protection and etc.
*A variety of safety measures, including strong wind alarm, safety dynamic scanning.
You can choose according to your needs, or you can consult our technicians, we can provide you with the best solution for STS Cranes.
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
| Lifting Capacity( below spreader ) | t | 30.5 | 35 | 40.5 | 50 | |||
| Lifting Capacity( above spreader ) | t | 38 | 45 | 50 | 60 | |||
| Work Level | A7 | A7 | A8 | A8 | ||||
| Span( m ) | S | 10.5 | 10.5 | 22 | 22 | |||
| Base Distance | B | 16.5 | 17.63 | 16 | 16 | |||
| Lifting Height( above/Below) | H1 | 22 | 22 | 28 | 38 | |||
| H2 | 16 | 10 | 14 | 14 | ||||
| Speed | Lifting Speed | Full Load | m/min | 46 | 30 | 50 | 70 | |
| Only With Spreader | 120 | 60 | 120 | 150 | ||||
| Trolley Traveling | 150 | 120 | 120 | 220 | ||||
| Crane Traveling | 45 | 25 | 45 | 45 | ||||
| One Luffing Time Of Jib | min | 7 | 6 | 5 | 5 | |||
| Main Dimension | L1 | 38000 | 30000 | 38000 | 55000 | |||
| L2 | 10000 | 10000 | 11000 | 18000 | ||||
| L3 | 4000 | 8850 | 6000 | 6300 | ||||
| L4 | 4000 | 110000 | 15000 | 20000 | ||||
| H3 | 14000 | 110000 | 12600 | 16500 | ||||
| H4 | 75670 | 68100 | 8000 | 9500 | ||||
| B0 | 25600 | 17630 | 25600 | 26500 | ||||
| Total Power | KW | 650 | 500 | 920 | 1700 | |||
| Max Wheel Load | KN | 300 | 260 | 400 | 450 | |||
| Steel Track Recommended | P50 | P50 | QU80 | QU100 | ||||
| Power | 380V, 50Hz，3Phase AC | |||||||
Capacity : 35-40.5t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
Capacity : 35-40.5t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
Capacity : 5-1000t Span : 5~31.5m Lifting height ： 6~30m Work level : A6,A7,A8
