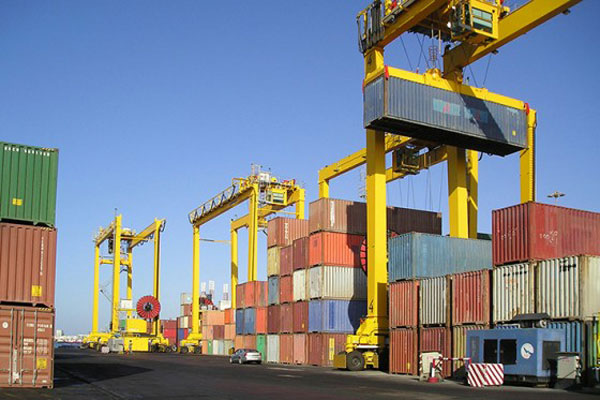

Rubber tyred container gantry crane is usually called RTG for short, which is employed to stack containers in container storage yards. It is flexibly moved by its own rubber tyres for transshipping containers.
Rubber tire container gantry crane(RTG Cranes) is employed to handle containers, large component at the loading/unloading places and container yard. This rubber tyred gantry crane is fitted with multiple hooking point's spreaders to meet the needs of different lifting situations. The whole crane can carry out 360° steering with flexible movement.
It employs bias-rail box-type structure, connects eith endbeam by high-strength, bolt ensuringeasy transportation.
Capacity:1-50t,Protection class F class,Single/Double speed,with traveling trolley and reducer,drum and motor include overload limiter switch
Mainly composed of anti-twisted box profiles and travel units.They can adapt to various load capacities and can becustomized according to customer requirements
A full range of safety systems, Products meet international standards,Customized services s will meet your needs
The technical parameters comply,with standars of FEM and HMl,With high rotational speed and low noise
Capacity:1-450t,Drop Forged Hook,Plain'C'type Swiveling on Thrust Bearing,equipped with belt buckie and wire ropes sheath
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES

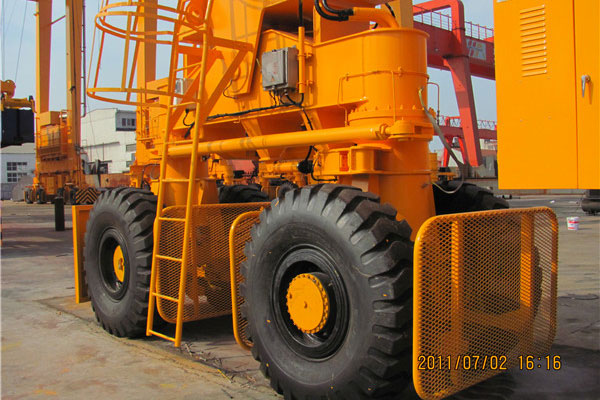

On May 7th, 2011, Rubber Tyred Container Gantry Crane has finished installation within 17 days in Thailand.
The Thailand customers plan to invest a Rubber Tyred Container Gantry Crane. After comparing the manufacturers and understanding the performance of products, they chose to sign an order with us.
In order to serve customers better, JUREN always provides installation guidance services. The company sent experienced technicians to assist in the installation and commissioning of the Rubber Tyred Container Gantry Crane, ensuring its safe and stable operation.
40.5t Rubber Tyred Container Gantry Crane installation in Philippines, JUREN RTG Crane for sale Philippines
Get Free Quote.jpg)

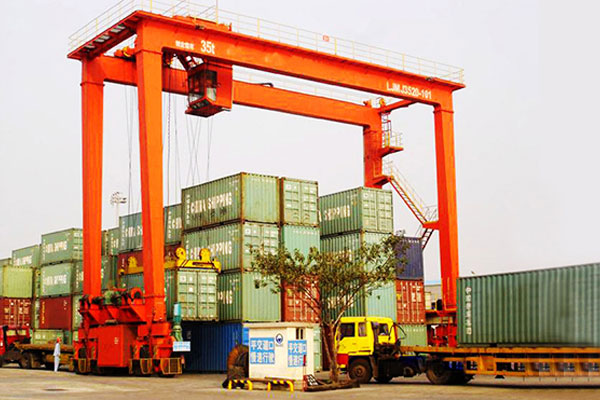

35t Rubber Tyred Container Gantry Cranes installation in Saudi Arabia, JUREN RTG Crane for sale Saudi Arabia
Get Free QuoteThis crane is composed of gantry frame structure, power transmission system, lifting mechanism, bridge travelling mechanism, trolley travelling mechanism, and a telescopic spreader. The equipment has stable performance, long service life, high production efficiency, good maneuverability, and little sensitivity to ground unevenness.
The RTG crane is powered by diesel generator alternator, using digital frequency conversion speed regulation, which can move in two directions in the container yards.
The crane is equipped with telescopic spreaders that can lift 20-foot and 40-foot containers. The spreaders mostly use fixed guide plates. In order to reduce the sway of the spreader, a mechanical anti-sway device is installed. For the convenience of stacking containers, a small-angle slewing device for spreaders is installed.
The right-angle steering mechanism is provided in order to be able to change the working site conveniently.
Capacity : 35-40.5t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8
Capacity : 5-1000t Span : 5~31.5m Lifting height ： 6~30m Work level : A6,A7,A8
Capacity : 5-1000t Span : 5~31.5m Lifting height ： 6~30m Work level : A6,A7,A8
