European singlr girder overhead crane is a compact lifting machine designed and manufactured strictly in accordance with FEM and DIN standards, with advanced technology and beautiful design. It is equipped with a low-headroom hoist/trolley and variable frequency drives on the hoist and trolley. Compared with other traditional cranes, the limit distance between the hook and the wall is the smallest and the net height is the lowest, which can maximize the lifting height and effectively increase the efficient working space. Due to the light weight of the crane and the minimum wheel load, the workshop cost can be greatly reduced. It is suitable for places such as workshop and warehouse material handling, precision assembly of large parts, etc.
* Light deadweight, light wheel weight, small size, reliable performance and easy operation.
* Light wheel load and small size can reduce the cost of plant construction and save costs such as lighting and heating.
* The use of high-quality components can reduce the failure rate and maintenance costs.
* Total installed power (power consumption), low total power consumption, can reduce costs.
* All weld lines should be non-destructively tested.
* All raw materials must be shot blasted.

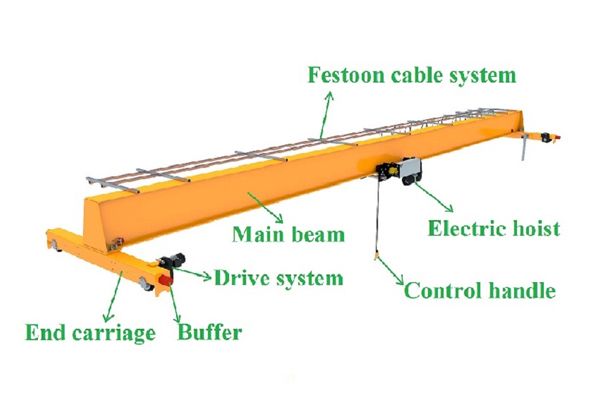

It employs bias-rail box-type structure, connects eith endbeam by high-strength, bolt ensuringeasy transportation.
Capacity:1-50t,Protection class F class,Single/Double speed,with traveling trolley and reducer,drum and motor include overload limiter switch
Mainly composed of anti-twisted box profiles and travel units.They can adapt to various load capacities and can becustomized according to customer requirements
A full range of safety systems, Products meet international standards,Customized services s will meet your needs
The technical parameters comply,with standars of FEM and HMl,With high rotational speed and low noise
Capacity:1-450t,Drop Forged Hook,Plain'C'type Swiveling on Thrust Bearing,equipped with belt buckie and wire ropes sheath
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
| Lifting Capacity (t) | Span (m) | Lifting Height (m) | Lifting Speed (m/min) | Hoist Traveling Speed(m/min) | Crane Traveling Speed (m/min) | Recommanded Track | ||
| 1 | 7.5~31.5 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | ||
| 2 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | |||
| 3.2 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | |||
| 5 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24、P30 | |||
| 10 | 6~12 | 0.8/5 | 2~20 | 3~30 | P30 | |||
| 12.5 | 6~12 | 0.66/4 | 2~20 | 3~30 | P30 | |||
| 16 | 9~12 | 0.66/4 | 2~20 | 3~30 | P43 | |||
| 20 | 9~12 | 0.66/4 | 2~20 | 3~30 | P43 | |||
| 30 | 9~28.5 | 0.66/4 | 2~20 | 3~30 | P43 | |||
| Work Duty | A3,A4,A5 | |||||||
| Power | 380V, 50Hz or Other | |||||||
| Temperature of Working Environment | ﹣20℃~﹢40℃ | |||||||

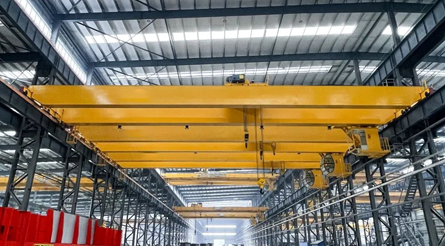

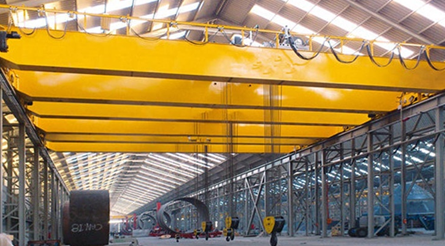

Capacity : 5-1000t Span : 5~31.5m Lifting height ： 6~30m Work level : A4,A5,A6,A7,A8

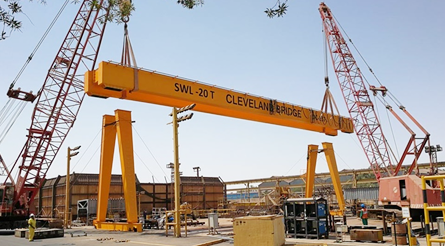

Capacity : 50t - 800t Span : 5~31.5m Lifting height ： 6~30m Work level : A4, A5,A6,A7
Capacity : 50-900t Span : 4-18m Lifting height ： 1.2-22m Work level : A3~A5
