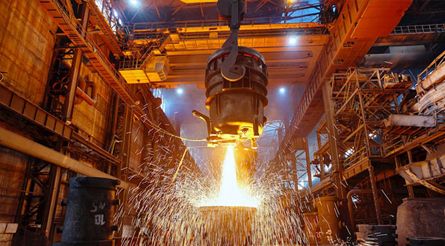

Ladle cranes (ladle handling cranes or casting ladle crane) are used to transport molten steel ladles in foundries and steel mills.Foundry cranes are superior performance cranes operating in both high temperature and high amount of dust environments. Safety and reliability always come first with JUREN ladle handling cranes because it is used to transport molten steel.

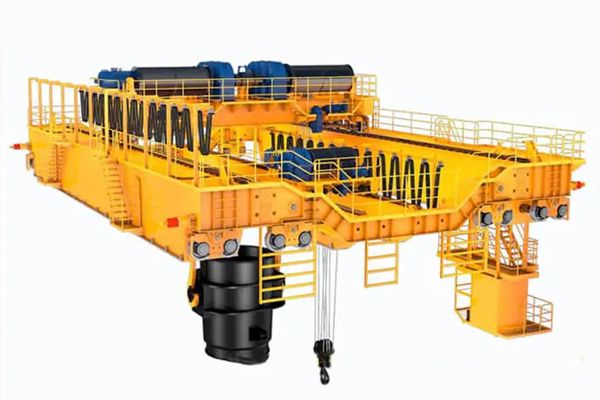

JUREN steel ladle crane includes double girder two rails ladle cranes, four girder six rails ladle cranes etc...
You can consult our technicians to provide a the best solution for your ladle handling crane.
JUREN ladle crane is designed to operate efficiently, uninterruptedly and safely in continuous use. Due to the high risk, special safety features have been designed for our ladle cranes:
* It adopts Siemens PLC and inverter.
* The profinet equipped with communication detection function.
* A monitoring system is installed to monitor the working status of the crane in real time.
* Frequency control, smooth lifting and less impact.
Because the casting crane works in the harsh environment of high temperature dust, the safety and reliability of the crane are much higher than that of the ordinary bridge crane.

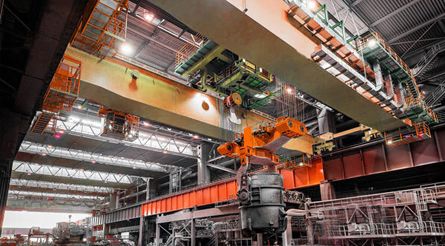

The main hook is a gantry spreader with two plate hooks, which is used for lifting and handling the ladle; the auxiliary hook is a forging hook or a plate hook, which is used for dumping molten steel, molten iron or other lifting items.
Casting crane takes heat insulation and radiation protection measures for the main beam, sub-main beam, electrical room, etc., in order to reduce the influence of external heat on its baking, because it needs to work continuously at high temperatures.
our motors and power supplies are designed with redundancy. If one of the motors or a group of electronic control devices fails, the other group of driving devices can be used under the rated lifting capacity. Complete a work cycle.
The highlights of this machine are integral processing technology and secondary assembly technology. For the first time assembly, the welding components sizes are fixed and adopt flat position welding to ensure the quality of welding seams.
The secondary assembly is to release welding stress before the integral processing of the bridge to ensure the stability and accuracy of product process precision.
40+ YEARS OF EXPERIENCE
CHINA FACTORY DIRECT SALE.
EXPORT TO 160+ COUNTRIES
| Techinical Specifications Part 1 | |||||||||
| Lifting Capacity | t | 100/32 Double Girder | 100/32 Four Girders | 125/32 Double Girder | 125/32 Four Girders | ||||
| Span | m | 19.5~28.5 | 19~28 | 19.5~28.5 | 19~28 | ||||
| Lifting Height | m | 20/22 | 20/22 | 20/22 | 20/22 | ||||
| Work Duty | A7 | ||||||||
| Main Lifting Speed | m/min | 7.5 | 7.5 | 7.5 | 7.5 | ||||
| Vice Lifting Speed | m/min | 10.5 | 12 | 10.5 | 12 | ||||
| Crane Traveling Speed | m/min | 38 | 32.5/37.4 | 38 | 38/37.4 | ||||
| Trolley Traveling Speed | m/min | 68 | 78 | 79.7 | 79.7 | ||||
| Power | KW | 393 | 426.5 | 479 | 484.5 | ||||
| Track | QU120 | ||||||||
| Lifting Capacity | t | 200/50 Four Girders | 225/65 Four Girders | 240/75 Four Girders | 280/75 Four Girders | 320/80 Four Girders | |||||
| Span | m | 28 | 27 | 24 | 21 | 24.5 | |||||
| Lifting Height | m | 26 | 28 | 31 | 24/26 | 28/32 | |||||
| Work Duty | A7 | ||||||||||
| Main Lifting Speed | m/min | 8 | 8 | 10 | 10 | 9 | |||||
| Vice Lifting Speed | m/min | 9.3 | 10 | 10.5 | 10.5 | 10 | |||||
| Crane Traveling Speed | m/min | 40 | 40/38 | 38/40 | 36/39 | 36/39 | |||||
| Trolley Traveling Speed | m/min | 86 | 87 | 87 | 76 | 63 | |||||
| Power | KW | -- | -- | -- | -- | ||||||
| Track | QU120 | ||||||||||
Capacity : 5-320t Span : 5~31.5m Lifting height ： 6~30m Work level : A5,A6,A7
Capacity : 5-320t Span : 5~31.5m Lifting height ： 6~30m Work level : A5,A6,A7
Capacity : 5-320t Span : 5~31.5m Lifting height ： 6~30m Work level : A5, A6,A7
